IPC-HFW71242H-Z
Model: IPC-HFW71242H-Z – Dahua 12MP IP Cameras
Details: 12MP IR Bullet WizMind Network Camera,16MP AI IR Bullet Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HFW71242H-Z Overview

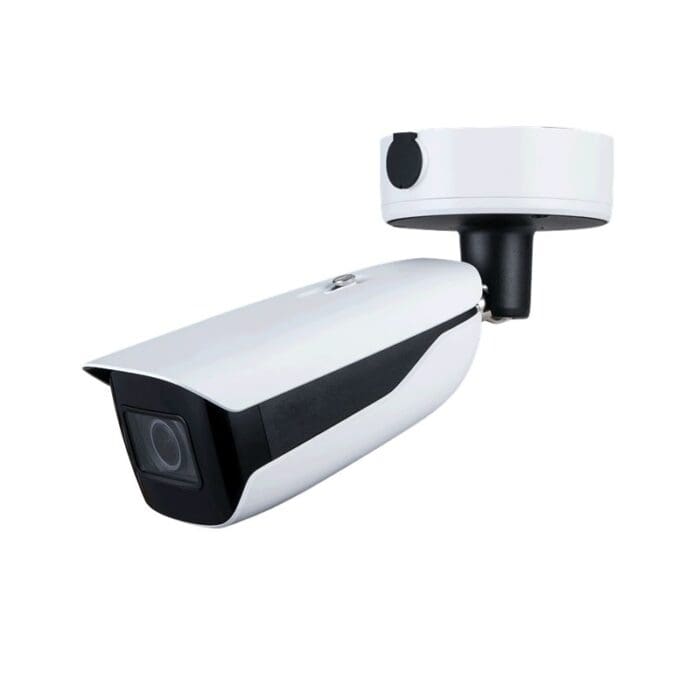

Quick Specs Figure 1 shows the appearance of IPC-HFW71242H-Z.
Table 1 shows the Quick Specs.
| Image Sensor | 1/1.7”12Megapixel progressive CMOS |
| Max. Resolution | 4000 (H) × 3000 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.01 Lux@F1.8 (Color,30IRE)0.001 Lux@F1.8 (B/W,30IRE)0 Lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 60 m (196.9 ft) (IR LED) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 4 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°Tilt: 0°–90°Rotation: 0°–360° |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm-12 mm |
| Max. Aperture | F1.8 |
| Field of View | Horizontal: 103°–44°Vertical: 75°–33°Diagonal: 135°–55° |
| Iris Type | Auto |
| Close Focus Distance | 1.2 m (3.9 ft) |
| DORI Distance | Lens |
| W | 93 m(305.1 ft) |
| T | 205 m (672.6 ft) |
| IVS | Abandoned object; missing object |
| IVS (Perimeter Protection) | Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
| Face Detection | Face detection; track; optimization; snapshot; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting; Support Duration Optimal,Non-living Filtering |
| Face Recognition | There are two models: General mode and counting mode.General mode: Face detection; track; snapshot; snapshot optimization; face enhancement; face exposure; face attribute extraction including 6 attributes (gender, age, glasses, expressions, mask and beard) and 8 expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear); supports up to 5 face databases with 50,000 face pictures in total; supports non-living filteringCounting mode: Offers advanced customer counter, filtering of specified face database, and exporting of reports before and after removing duplicate faces. |
| Face and Body Detection | There are two modes: General mode and PPE Detection.General mode: Supports enabling face detection and human detection at the same time, and alarms can be triggered.PPE Detection: Supports PPE detection, can detect attributes including face mask, safety helmet, glasses, and safety vest, top color and bottom color, and determine whether PPE requirements are met. Alarms can be triggered according to the alarm settings. |
| People Counting | Support tripwire number counting, people counting in area, and displaying and outputting yearly/monthly/daily reports.Support queue management, and displaying and outputting monthly/daily reports.Support 4 tripwire rules configuration, people counting in 4 areas, and 4 queue management functions. |
| ANPR | ANPR, track, priority, snapshotVehicle attributes: License plate, vehicle type, vehicle colorOther attributes: Seat belt, smoking, phoning |
| Video Metadata | Vehicle detection, non-motor vehicle detection, face Supports human body, human face, motor vehicle and non-motor vehicle image capture, attributes extraction, counting targets by directions (A>B, B>A, or A< >B), and exporting the report. |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.264+Smart H.265+ |
| Video Frame Rate | Main stream: 4000 × 3000 @1-25/30 fpsSub stream: 704 × 576@1-25fps, 704 × 480@1-30fpsThird stream: 1920 × 1080 @1-25/30 fpsFourth stream: 1920 × 1080 @1-25/30 fpsFifth stream: 704 × 576 @1-25 fps; 704 × 480 @1-30 fps |
| Stream Capability | 5 streams |
| Resolution | 12M (4000 × 3000); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296); 2M (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–16384 kbpsH.265: 32 kbps–14080 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| DWDR | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio Compression | G.711A; G.711Mu; G.726; G.723 |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; video metadata; ANPR; people counting in area; stay alarm; people counting; people counting exception detection; queue management;safety exception |
| Network | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P;RTMP |
| User/Host | 20 (Total bandwidth: 240 M.) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE9 and laterChrome: Chrome 42 and laterFirefox: Firefox 48.0.2 and later |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certifications | CE-LVD: EN62368-1,EN60950-22 (optional)CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14,UL 50E NEMA Type 4X (optional) |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (3.5mm JACK port) |
| Audio Output | 1 channel (3.5mm JACK port) |
| Alarm Input | 3 channels in: 5mA 3V–5V DC |
| Alarm Output | 2 channels out: 1,000mA 30V DC/500mA 50V DC |
| Power Supply | 12V DC/24V AC/POE+(802.3at); ePoE |
| Power Consumption | Basic power consumption: 4.9W (12V DC); 6.53W (24V AC active power); 6.3W (PoE)Max. power consumption: 15.2W (12V DC); 19.32W(24V AC active power); 18.9W (PoE) |
| Operating Conditions | –40°C to +65°C (–40°F to +149°F)/Less than 95% RH |
| Storage Conditions | –40°C to +65°C (–40°F to +149°F) |
| Protection Grade | IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional) |
| Casing | Metal + plastic |
| Dimensions | 340.1 mm × 138.3 mm × 134 mm (13.39″ × 5.44″ × 5.28″) (L × W × H) |
