IPC-HUM8231-L1
Model: IPC-HUM8231-L1 – Dahua Other Products
Details: 2MP Covert Pinhole Network Camera-Lens Unit
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC-HUM8231-L1 Overview

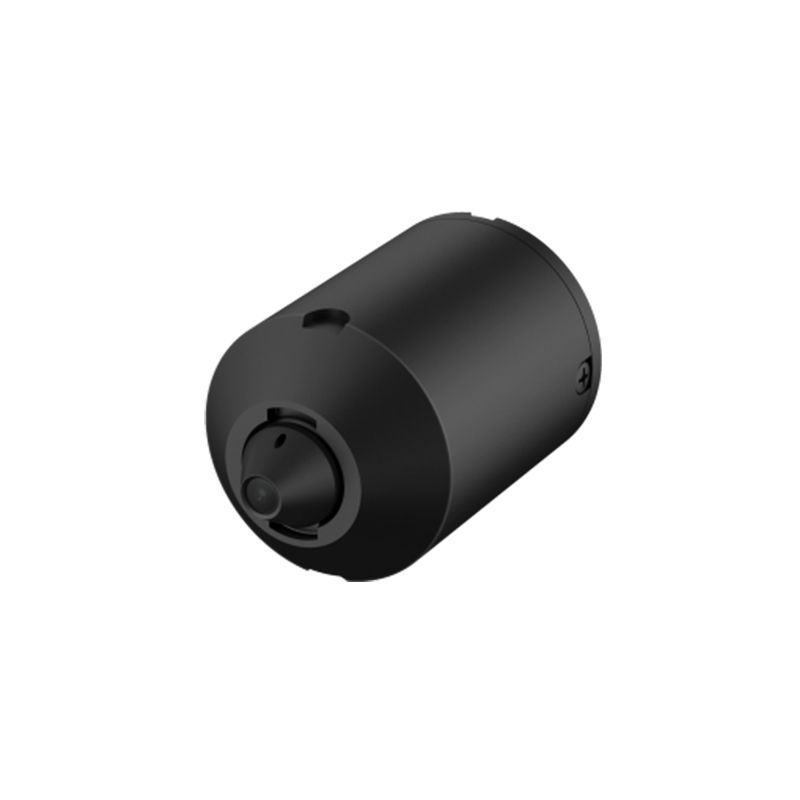

Quick Specs Figure 1 shows the appearance of IPC-HUM8231-L1.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8” 2Megapixel progressive scan CMOS |
| Scanning System | Progressive |
| Effective Pixels | 1920(H)x1080(V) |
| Minimum Illumination | 0.02Lux/F2.4 (Color,1/3s,30IRE)0.08Lux/F2.4 (Color,1/30s,30IRE)0.01Lux/F2.4 (B/W,1/3s,30IRE)0.04Lux/F2.4 (B/W,1/30s,30IRE) |
| IR Distance | N/A |
| IR On/Off Control | N/A |
| IR LEDs | N/A |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8mm |
| Max. Aperture | F2.4 |
| Angle of View | H:104° ,V:59° |
| Optical Zoom | N/A |
| Focus Control | Fixed |
| Close Focus Distance | N/A |
| DORI Distance | Detect |
| 38m(126ft) | 15m(50ft) |
| Pan/Tilt/Rotation Range | N/A |
| Certifications | CE (EN 60950:2000)UL:UL60950-1FCC: FCC Part 15 Subpart B |
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Ingress Protection | N/A |
| Vandal Resistance | N/A |
| Casing | Metal |
| Dimensions | Φ30.5mm×48.65mm(Φ1.20”×1.91”) |
