IPC5202-VR
Model: Huawei eSpace IPC5202-VR 2.0 Megapixel Camera
Details: Huawei eSpace IPC5202-VR 2.0 Megapixel Infrared Tube-shaped IPC(30fps,f=2.8-12mm,FE,IR30-50m)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC5202-VR Overview

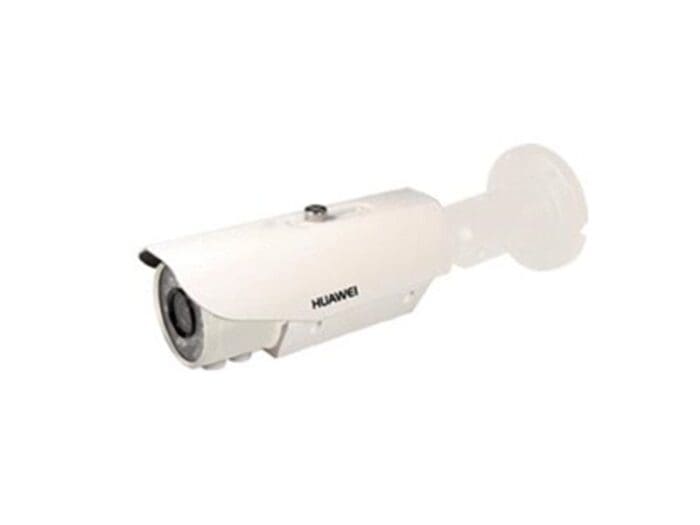

Quick Specs Figure 1 shows the appearance of IPC5202-VR.
Table 1 shows the Quick Specs.
| Image sensor | 1/2.8″ Progressive Scan CMOS |
| Effective pixels | 1920(H)×1080(V) |
| Minimum Illumination | color: 0.2Lux@(F1.2, AGC ON)B/W: 0Lux@(F1.2, IR LED ON |
| Day/Night mode | Automatic ICR |
| IR distance | 30-50meters |
| Electronic shutter speed | 1/5s ~ 1/50,000s |
| Gain control | Supported |
| White balance | Supported |
| WDR | 70dB |
| Backlight compensation | GAMMA |
| Focal length | 2.8 ~ 12mm |
| Aperture | Auto IrisDC drive |
| Video encoding formatVideo resolution and frame rate | H.264 / MJPEG50Hz: 25fps (1280×720), 25fps (640×360)60Hz: 30fps (1280×720), 30fps (640×360) |
| Video bit rate | Main-Stream: 500Kbps ~ 12MbpsSub-Stream: 100Kbps ~ 6Mbps |
| Multiple-StreamAudio encoding format | First and second streams: H.264; Third stream: MJPEGG.711a /G.711u/raw_pcm |
| Audio bit rate | 64kbps |
| Communication interface | One RJ45 10/100 Base-T self-adaptive Ethernet interface and one RS-485 interface |
| Alarm interfaceAudio interface | 1-channel alarm input/1-channel alarm Output1-channel audio input/1-channel audio Output |
| Analog port | RCA female socket |
| Motion detection | Eight motion detection areas |
| Privacy masks | Five privacy mask areas with adjustable sizes |
| Network Protocol | IPv4, RTSP/RTP/RTCP, TCP/UDP, HTTPS, DHCP, DNS, SFTP,DDNS, PPPoE, SMTP, and NTP |
| Maximum number of concurrent users | Ten users access or two channels of media streams |
| Security mode | User name and password authentication |
| Other functions | One-key reset, triple code streams, and heartbeat mechanism |
| Power supply | DC12V ±10% 2A/ PoE 802.3af |
| Power consumption | 5W(IR LED OFF),11W(IR LED ON) |
| Operating temperature & humidity | –10°C to +60°C (when the infrared lamp is disabled), –40°C to +60°C (with a heater);< 90%(without condensation) |
| Protection level | IP66 |
| Net weight | 1.7kg |
