IPC5702-VR-VP
Model: Huawei eSpace IPC5702-VR-VP 2.0 Megapixel Camera
Details: Huawei eSpace IPC5702-VR-VP 2.0 Megapixel Infrared Vandal-proof Dome IPC(30fps,f=2.8-12mm,FE,IR10-20m)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
IPC5702-VR-VP Overview

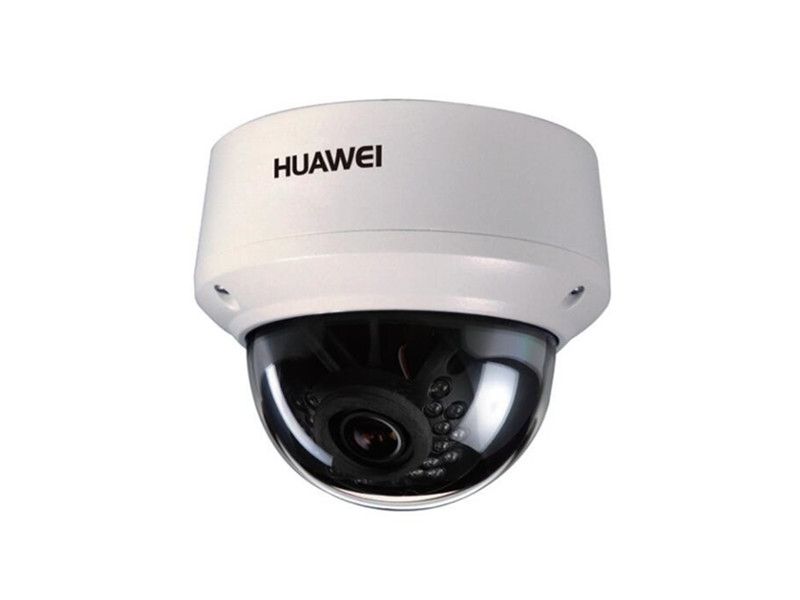

Quick Specs Figure 1 shows the appearance of IPC5702-VR-VP.
Table 1 shows the Quick Specs.
| Image sensor | 1/2.8″ Progressive Scan CMOS |
| Effective pixels | 1920(H×1080(V) |
| Minimum Illumination | Multicolor: 0.2 lux@ (F1.2, AGC ON), B/W: 0.1 lux@ (F1.2, IR LED ON) |
| Day/Night mode | Automatic ICR |
| Electronic shutter speed | 1s~1/50, 000s |
| Gain control | Supported |
| White balance | Supported |
| WDR | 70dB |
| Backlight compensation | Supported |
| Focal length | 2.8～12mm |
| Aperture | Auto Iris DC drive |
| Video encoding format | H.264 / MJPEG |
| Video resolution and frame rate | 1920×1080, 1280×720, 720×576(PAL), 720×480(NTSC), 352×288(PAL), 352×240(NTSC) |
| Video bit rate | Main-Stream:500Kbps~12MbpsSub-Stream:100Kbps~6Mbps |
| Multiple-Stream | triple Streams |
| Audio encoding format | G.711a/G.711u/raw_pcm |
| Audio bit rate | 64kbps |
| Communication interface | One RJ45 10/100 Base-T self-adaptive Ethernet interface and one RS-485 interface |
| Alarm interface | 1-channel alarm input/1-channel alarm Output |
| Audio interface | 1-channel audio input/1-channel audio Output |
| Analog port | BNC connector |
| Motion detection | Eight motion detection areas |
| Privacy masks | Five privacy mask areas with adjustable sizes |
| Network protocol | IPv4, RTSP/RTP/RTCP, TCP/UDP, HTTPS, DHCP, DNS, SFTP, DDNS, PPPoE, SMTP, and NTP |
| Maximum number of concurrent users | Ten users access or two channels of media streams |
| Local storage | SDHC card（32G） |
| Security mode | User name and password authentication |
| Other functions | One-key reset, triple code streams, and heartbeat mechanism， 3-axis adjustment |
| SDK development | linux/windows C++ SDK |
| Power supply | DC12V, AC24V, PoE |
| Power consumption | ≤5W(IR lED OFF), ≤7W(IR LED ON) |
| Operating temperature & humidity | -10℃~+60℃ ; < 90%(without condensation) |
| Net weight | 0.9kg |
| Dimensions (mm) | ø130×111.5 |
