Name: ISR4221X/K9
SKU: ISR4221X/K9
Price: 1848.70 USD
Availability: InStock

ISR4221X/K9

Model: ISR4221X/K9 – Cisco Router ISR 4000
Details: Cisco ISR 4221 (2GE,2NIM,8G FLASH,8G DRAM,IPB)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

ISR4221X/K9 Overview

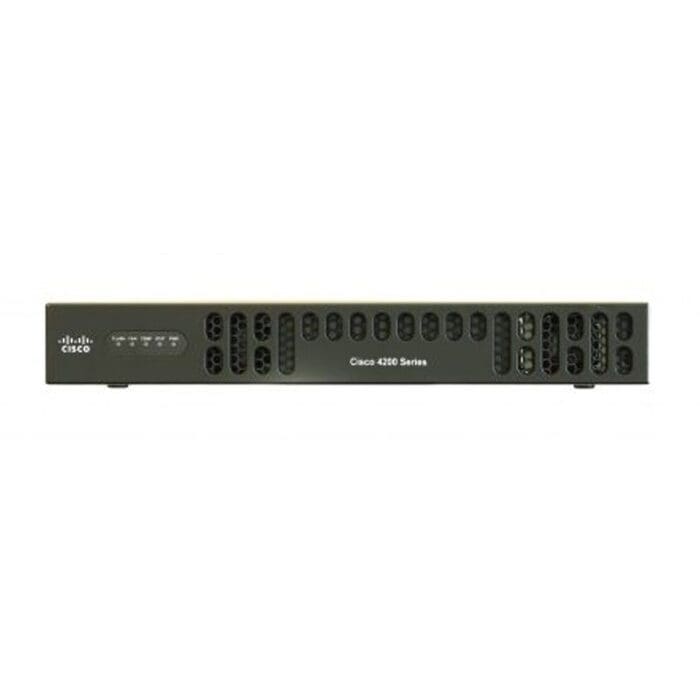

Quick Specs Figure 1 shows the appearance of ISR4221X/K9.

Table 1 shows the Quick Specs.

Product Code	ISR4221X/K9
Description	Cisco ISR 4221 (2GE,2NIM,8G FLASH,8G DRAM,IPB)
Aggregate Throughput (Default)	35 Mbps
Aggregate Throughput (Performance License)	75 Mbps
Aggregate CEF Only Throughput (Boost License)	1.2 Gbps
Total onboard WAN or LAN 10/100/1000 ports	2
Total onboard WAN or LAN 10Gbps ports	N/A
RJ-45-based ports	2
SFP-based ports	1
Enhanced service-module slots	0
Doublewide service-module slots	0
NIM slots	2
OIR (all I/O modules)	NO
Onboard ISC slot	NO
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)	4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)	4 GB
Default memory DDR3 ECC DRAM (data plane)	N/A
Maximum memory DDR3 ECC DRAM (data plane)	N/A
Default memory DDR3 ECC DRAM (control/services plane)	N/A
Maximum memory DDR3 ECC DRAM (control/services plane)	N/A
Default flash memory	8 GB
Maximum flash memory	8 GB
External USB 2.0 slots (type A)	1
USB console port -type B mini (up to 115.2 kbps)	0
Serial console port – RJ45 (up to 115.2 kbps)	1 (combo CON/AUX port)
Serial auxiliary port – RJ45(up to 115.2 kbps)	1 (combo CON/AUX port)
Power-supply options	External AC only
Redundant power supply	N/A
AC input voltage	100 to 240 VAC autoranging
DC Input VoltageInput VoltageInput Current	N/AN/A
AC input frequency	47 to 63 Hz
AC input current range, AC power supply (maximum)	1.5 to 0.6A
AC input surge current	90 A peak and less than 3 Arms per half cycle
Typical power (no modules) (watts)	24
Maximum power with AC power supply (watts)	90
Maximum power with DC power supply (watts)	N/A
Maximum power with PoE power supply (platform only) (watts)	N/A (No PoE Support)
Maximum endpoint PoE power available from PoE power supply (watts)	N/A (No PoE Support)
Maximum endpoint PoE power capacity with PoE boost (watts)	N/A (No PoE Support)
Dimensions(H x W x D)	1.72 x 12.7 x 10″(43.7 x 322.6 x 254 mm)
ExternalPower SupplyDimensions (Hx W x D)	37 x 73 x 152mm (Phihongmfg PN:AA90U120A-R) 36.5x 67 x 155mm (Deltamfg PN:ADP90GRBA)
Rack height	1 rack unit(1RU)
Rack-mount19in. (48.3cm) EIA	Optional
Rack-mount23in. (58.4cm) EIA	NA
Wall-mount	Yes
Airflow	I/O side to bezel side
MTBF (Hours)	593270
Temperature	-40 to 158ºF(-40 to 70ºC)
Altitude(China)	0–6,560 ft.(0–2,000 m)
Altitude(Rest of theworld)	0–10,000 ft.(0–3,050 m)
Short Term Temperature upto 6560ft per NEBS GR-63-CORE	N/A
Relative humidity	5% to 95%
Short-term humidity	5% to 90% not to exceed 0.024 kg water/kg of dry air
Acoustics:Sound pressure(Typical/maximum)	28.5/53 dBA
57.2/80.8 dBA	41/68 dBA
Altitude	15,584 ft (4750m)
Safety	UL 60950-1CAN/CSAC22.2 No.60950-1EN 60950-1AS/NZS60950-1IEC 60950-1GB-4943ICES-003Class AEN55022Class ACISPR22Class AAS/NZS3548Class AVCCI V-3CNS 13438EN 300-386EN 61000 (Immunity)EN 55024,CISPR 24EN50082-1KN22,KN24
Telecom	TIA-968-B CS-03 ANSI T1.101 ITU-T G.823, G.824 IEEE 802.3 RTTE Directive Homologation requirements vary by country and interface type.
