ITC237-PW6M-IRLZF1050

Original price was: $418.00.Current price is: $397.10.

Model: ITC237-PW6M-IRLZF1050 – Dahua Entrance & Exit Control Products
Details: Dahua 2MP Long Range Access ANPR Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: ITC237-PW6M-IRLZF1050 Categories: , ,
Description

ITC237-PW6M-IRLZF1050 Overview

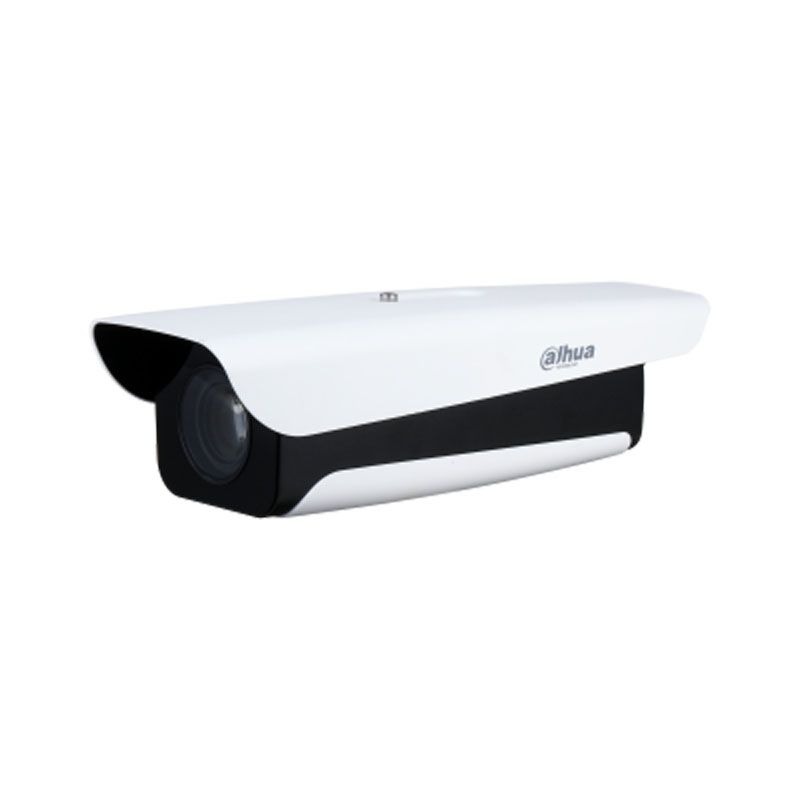

Quick Specs Figure 1 shows the appearance of ITC237-PW6M-IRLZF1050.

Table 1 shows the Quick Specs.

Illuminator 6 IR illuminators (brightness adjustable)
Image Sensor 1/1.8” CMOS
Image Resolution 1920 Ă— 1080 (OSD black strip excluded)
Video Resolution Main stream: 1080P (1920 Ă— 1080) / 720P (1280 Ă— 720)Sub stream: 720P (1280 Ă— 720) / D1 (704 Ă— 576, 704 Ă— 480) / CIF (352 Ă— 288, 352 Ă— 240)
Video Frame Rate PAL: Main stream (1280 Ă— 960@25fps, 1280 Ă— 720@25fps), sub stream: (1280 Ă— 720@25fps, 704 Ă— 576@25fps, 352 Ă— 288@25fps)NTSC: Main stream (1280 Ă— 960@30fps, 1280 Ă— 720@30fps), sub stream (1280 Ă— 720@30fps, 704 Ă— 408@30fps, 352 Ă— 240@30fps)
Bit Rate H.264B: 20Kbps–32768KbpsH.264M: 20Kbps–32768KbpsH.264H: 20Kbps–32768KbpsH.265: 20Kbps–32768KbpsMJPEG: 59Kbps–65536Kbps
Video Encoding H.264B/H.264M/H.264H/H.265/MJPEG
Image Encoding JPEG
Noise Reduction 3DNR
White Balance Full auto; auto color temperature range; customized color temperature
Electronic Shutter 1/50–1/10000, auto or manual
Wide Dynamic Range 96db
Edge Enhancement Yes
Exposure Mode Full auto; customized auto; customized
Iris Auto iris (W:1.3–T:2.3)
Trigger Mode Video detection; I/O coil; video detection and I/O coil
Shutter Single shutter
Storage 1 built-in TF card port. Kingston 16G, 32G and 64G; Dahua 16G, 32G and 64G; SanDisk 16G, 32G and 64G
Image Tampering Prevention Yes. Video/picture can be checked through watermark and verification
Max Illumination Distance 25m (82.02ft)
Alarm Event Alarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access
Security Mode Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control
OSD Overlay Supports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)
ANR (Automatic Network Replenishment) Yes. Platform/FTP
Auto Register Yes
Vehicle Detection Vehicle capture rate ≥99%
Vehicle Recognition Supports recognizing vehicle type, vehicle logo, vehicle color, license plate, and vehicle without plate. Vehicle recognition rate ≥90%
Video Metadata Yes
Intelligent Track Frame Intelligent frame display. Supports displaying vehicle plate and vehicle path
Lens 10mm–50mm (0.39”–1.97”)
Analog Output 1
Ethernet Port 1 100/1000M Ethernet port (RJ45)
RS-485 port 1
I/O Port 2, optocoupler input (switch quantity)
Alarm Input 1, optocoupler input (switch quantity)
Alarm Output 2-channel relay output, connecting to devices such as barrier
Audio Input 1-channel RCA port
Audio Output 1-channel RCA port
Power Output 12V DC±10% voltage output, ≤1A current output
Power Supply 12V DC, 24V AC, PoE
Power Consumption < 20W
Working Temperature ?30°C to +65°C (?22°F to +149 °F)
Working Humidity 10%–90% (no condensation)
Housing Metal and plastic
Protection Grade IP67
Dimensions (LĂ—WĂ—H) 370.4mmĂ—124.7mmĂ—105.7mm (14.58”Ă—4.91”Ă—4.16”)
Net Weight 1.7kg (3.75lb)
Gross Weight 2.5kg (5.51lb)
Installation Universal joint installation

Get more information
Do you have any question about the ITC237-PW6M-IRLZF1050?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices.

100% Quality Assurance: All items are ORIGINAL and GENUINE only.

Free Technical Support: Our FREE Technical Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee: You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured.
