J9152A
Model: J9152A – HP Transceiver
Details: HP X132 10G SFP+ LC LRM Transceiver
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
J9152A Overview

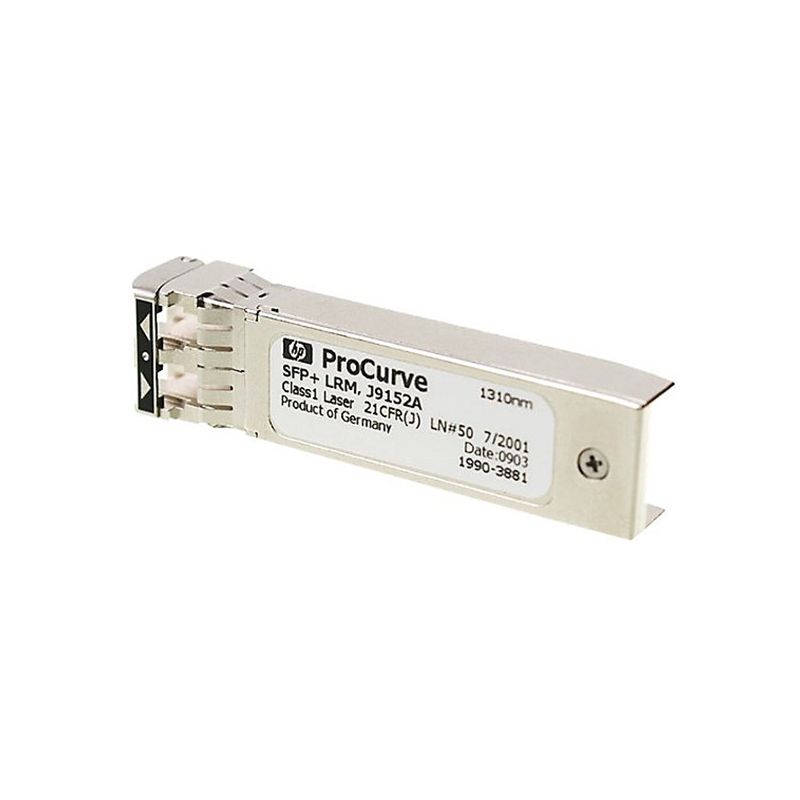

Quick Specs Figure 1 shows the appearance of J9152A.
Table 1 shows the Quick Specs.
| Product Name | HP X132 10G SFP+ LC LRM Transceiver |
| Ports | 1 LC 10-GbE port (IEEE 802.3aq Type 10Gbase-LRM); Duplex: full only |
| Connector type | LC |
| Wavelength | 1310 nm |
| Dimensions | 2.19(d) x 0.54(w) x 0.47(h) in. (5.57 x 1.38 x 1.19 cm) |
| Weight | 0.04 lb. (0.02 kg) |
| Transceiver form factor | SFP+ |
| Operating temperature | 32°F to 158°F (0°C to 70°C) |
| Operating relative humidity | 0% to 85%, noncondensing |
| Nonoperating/Storage temperature | -40°F to 185°F (-40°C to 85°C) |
| Altitude | up to 10,000 ft. (3 km) |
| Power consumption typical | 0.7 W |
| Power consumption maximum | 1 W |
| Cable type | 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively (a mode conditioning patch cord may be needed in some multimode fiber installations) |
| Cable Maximum distance | · 0.5-220m with 62.5 µm multimode cable @ 160/500 MHz*km· 0.5-220m with 62.5 µm multimode cable @ 200/500 MHz*km· 0.5-100m with 50 µm multimode cable @ 400/400 MHz*km· 0.5-220m with 50 µm multimode cable @ 500/500 MHz*km· 0.5-220m with 50 µm multimode cable @ 1500/500 MHz*km |
| Cable length | 0.5m to 220m |
| Fiber type | Multi Mode |
