J9821A
Model: HPE J9821A – Aruba 54xx Chassis Units
Details: Aruba 5406R zl2 Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
J9821A Overview

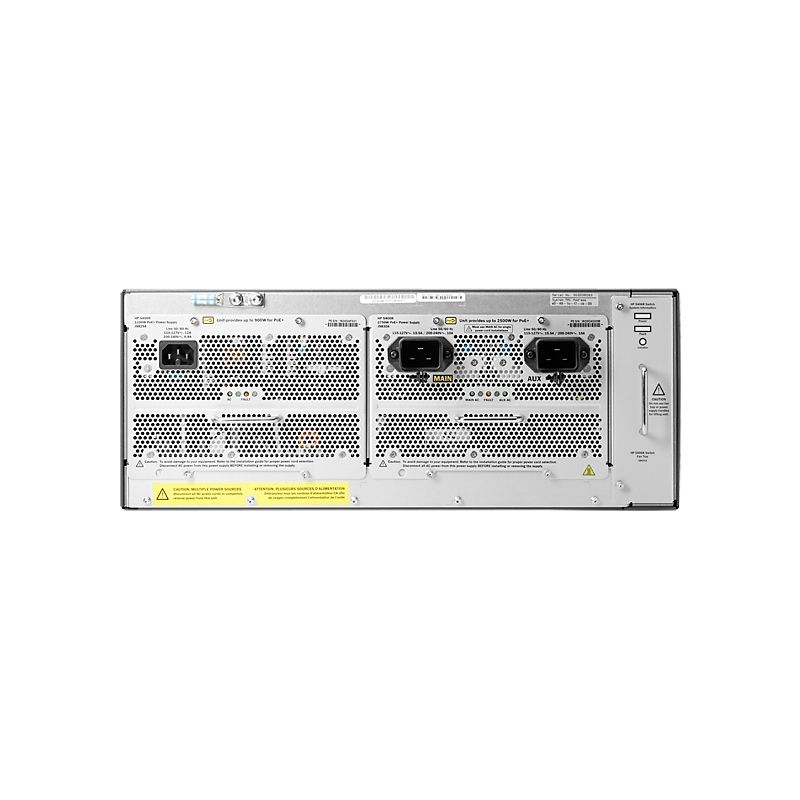

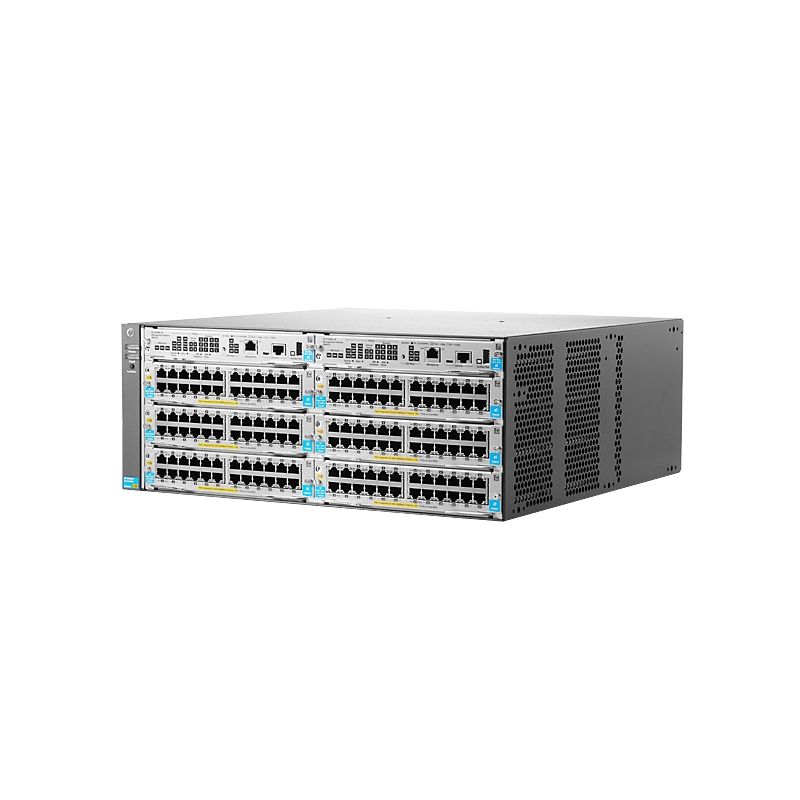

Quick Specs Figure 1 shows the appearance of J9821A.
Table 1 shows the Quick Specs.
| Type | HPE 5406R zl2 Switch |
| Included accessories | 1 HPE 5400R zl2 Management Module (J9827A)1 HPE 5406R zl2 Switch Fan Tray (J9831A) |
| I/O ports and slots | 6 open module slotsSupports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ports or 48 HPE Smart RateMulti-Gigabit or 12 40GbE ports, or a combination |
| Power supplies | 2 power supply slots1 minimum power supply required (ordered separately) |
| Fan Tray | Includes: 1 x J9831A1 fan tray slot |
| Dimensions (W x D x H) | 17.5(w) x 17.75(d) x 6.9(h) in. (44.45 x 45.09 x 17.53 cm) (4U height) |
| Weight | 24.5 lb (11.11 kg) |
| v3 Gigabit Module | Dual ARM® Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal |
| v2 Gigabit Module | ARM 11 @ 450 MHz; Packet buffer size: 18 MB internal |
| v3 10G Module | Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal |
| v2 10G Module | ARM 11 @ 550 MHz; Packet buffer size: 18 MB internal |
| v3 40G Module | Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal |
| Management Module | Freescale P2020 dual core @ 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM |
| Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included);Horizontal surface mounting only |
| 1000 Mb Latency | < 2.8 µs (FIFO 64-byte packets) |
| 10 Gbps Latency | < 1.8 µs (FIFO 64-byte packets) |
| 40 Gbps Latency | < 1.5 µs (FIFO 64-byte packets) |
| Throughput | Up to 571.4 Mpps |
| Routing/Switching capacity | 960 Gbps |
| Switch fabric speed | 1015 Gbps |
| Routing table size | 10000 entries (IPv4), 5000 entries (IPv6) |
| MAC address table size | 64000 entries |
| Operating temperature | 32°F to 113°F (0°C to 45°C); 0°C to 40°C with J8177C transceiver installed, 0°C to 35°Cwith FIPS Opacity Shield installed |
| Operating relative humidity | 15% to 95% @ 113°F (45°C), noncondensing |
| Nonoperating/Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storage relative humidity | 15% to 95% @ 149°F (65°C), noncondensing |
| Altitude | Up to 10,000 ft (3 km) |
| Acoustic | Power: 44 dB, Pressure: 31.7 dB ISO 7779, ISO 9296 |
| Frequency | 50/60 Hz |
| 80plus.org Certification | Gold |
| Description | Does not come with power supply. Two power supply slots are available; three different powersupplies are available. See power supply products for additional specifications. |
| Maximum heat dissipation | 2450 BTU/hr (2584 kJ/hr), (max. non-PoE);3700 BTU/hr (3903 kJ/hr), (max. using PoE) |
| Voltage | 100–127/200–240 VAC, rated |
| Idle power | (depending on power supply chosen) |
| Notes | Supported 1G SFP transceivers are revision “B” or later (product number ends with the letter “B” or later; For example, J9142B, J8177C). |
| Safety | CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950 |
| Emissions | FCC part 15 Class A; EN 55022/CISPR 22 Class A |
| ImmunityENESDRadiatedEFT/BurstSurgeConductedPower frequency magnetic fieldHarmonicsFlicker | EN 55024, CISPR 24IEC 61000-4-2; 4 kV CD, 8 kV AD;HPE ENV. 765.002IEC 61000-4-3; 3 V/mIEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) IEC 61000-4-5; 1 kV/2 kV AC, 1 kV signal, 0.5 kV DCIEC 61000-4-6; 3 VrmsIEC 61000-4-8; 1 A/m, 50 or 60 HzIEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periodsEN 61000-3-2, IEC 61000-3-2EN 61000-3-3, IEC 61000-3-3 |
| Management | IMC—Intelligent Management Center; Command-line interface; Web browser; Configuration menu;Out-of-band management (RJ-45 Ethernet); SNMP Manager; Out-of-band management (serialRS-232C or micro USB) AirWave Network Management |
