JC101B
Model: JC101B – HPE FlexFabric 5800 Switches
Details: HPE FlexFabric 5800 48G POE+ 2-slot Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
JC101B Overview

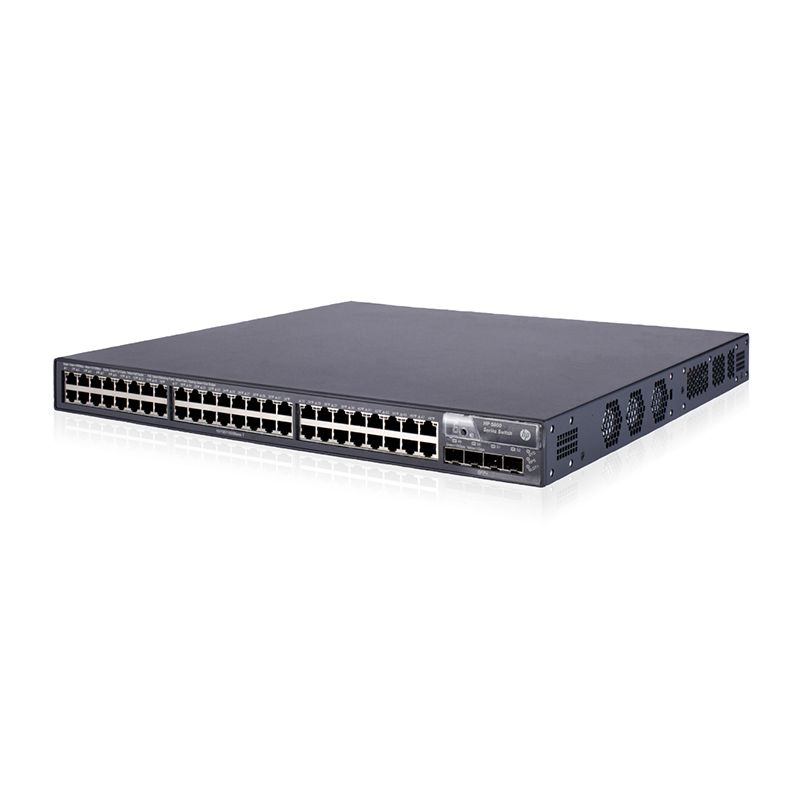

Quick Specs Figure 1 shows the appearance of JC101B.
Table 1 shows the Quick Specs.
| Brand | HPE |
| Product Name | FlexFabric 5800 48G POE+ 2-slot Switch |
| Model Number | JC101B |
| Type | Switch |
| Form Factor | Rack-mountable |
| Ports | 48 x 10/100/1000 (POE+) + 4 x Gigabit / 10Gb SFP+ |
| Power Over Ethernet (PoE) | POE+ |
| Performance | Switching capacity: 208 GbpsThroughput: up to 154 Mpps |
| MAC Address Table Size | 32K entries |
| Management | Managed |
| Networking | Layer 3 switching |
| Routing Protocol | Static, RIP, OSPF, BGP, PIM |
| Features | Flow control, layer 3 switching, DHCP support, VPN support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP Root Guard, Non-Stop Routing (NSR), sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3at (PoE+), IEEE 802.3az |
| Memory | RAM: 2 GBFlash Memory: 512 MB |
| Power Supply | 1 (installed) / 2 (max) |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Dimension (W x D x H) | 17.32 in x 18.1 in x 1.73 in |
| Software Included | HP Intelligent Management Center |
| Warranty | Limited lifetime warranty |
