-5%
JD118B
Model: JD118B – HP Transceiver
Details: HPE X120 1G SFP LC SX Transceiver:HPN Campus Transceivers-C
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
JD118B Overview

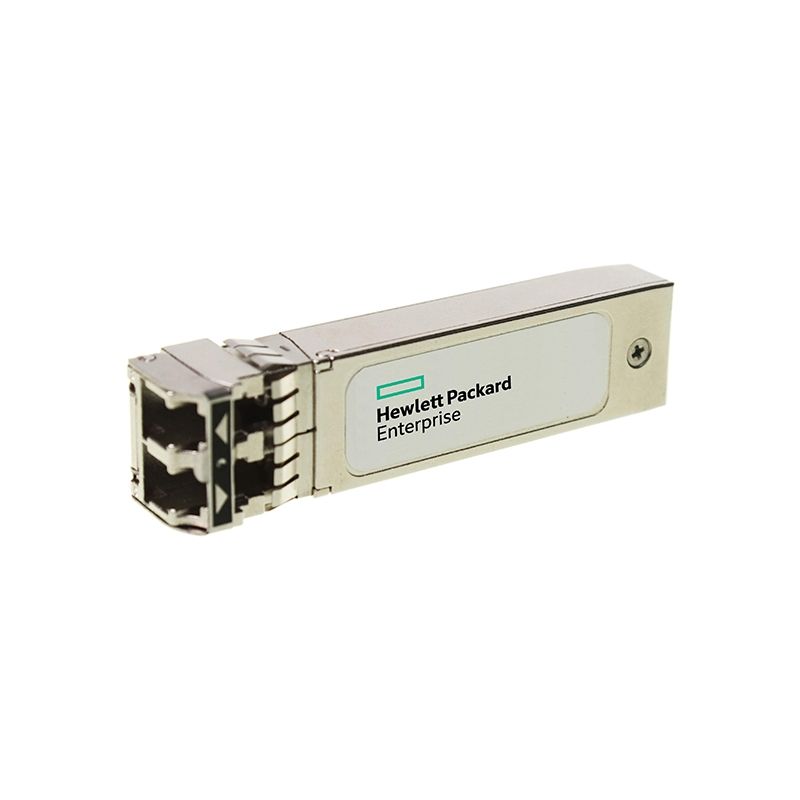

Quick Specs Figure 1 shows the appearance of JD118B.
Table 1 shows the Quick Specs.
| Type | HP X120 1G SFP LC SX Transceiver |
| Ports | 1 LC 1000BASE-SX port |
| Connector type | LC |
| Wavelength | 850 nm |
| Cabling distance (maximum) | • FDDI Grade distance = 220m• OM1 = 275m• OM2 = 500m• OM3 = Not Specified by standard |
| Cable length | up to 550m |
| Fiber type | Multi Mode |
| Power consumption typical | 0.8 W |
| Power consumption maximum | 1.0 W |
| Dimensions | 2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm) |
| Weight | 0.04 lb. |
Get more information
Do you have any question about the JD118B?
Contact us now via Live Chat or sales@metafinitivetech.com
