Sold out
JE073B
Model: JE073B – HP 5120 SI Switches
Details: HPE 5120 16G SI Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
JE073B Overview

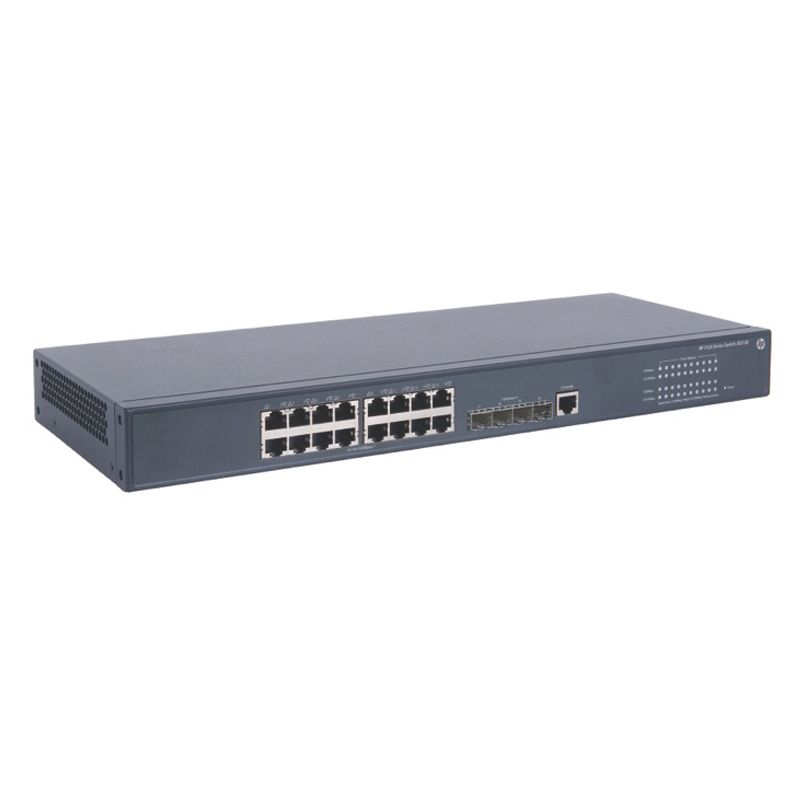

Quick Specs Figure 1 shows the appearance of JE073B.
Table 1 shows the Quick Specs.
| Type | HPE 5120 16G SI Switch |
| I/O ports and slots | 16 RJ-45 autosensing 10/100/1000 portsDuplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only4 fixed Gigabit Ethernet SFP ports |
| Additional ports and slots | 1 RJ-45 serial console port |
| Memory and processor | 128 MB flash128 MB SDRAMPacket buffer size: 0.5 MB |
| Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
| Management | IMC – Intelligent Management Center; Command-line interface; Web browser; SNMP manager |
| Performance | 1000 Mb Latency < 3 µsThroughput up to 29.8 MppsRouting/Switching capacity 40 GbpsRouting table size 32 entries (IPv4)MAC address table size 8192 entries |
| Dimensions (H x W x D) | 4.37 x 16 x 43.94 cm ( 1.72 x 17.3 x 6.3 in ) ( 1U height ) |
| Weight | 3 kg (6.61 lb) |
| Maximum heat | 85 BTU/hr (89.68 kJ/hr) |
| Voltage | 100 – 240 V ac, rated (depending on power supply chosen) |
| Maximum power rating | 25.1 W |
| Idle power | 11.9 W |
| PoE power | – |
| Frequency | 50/60 Hz |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 10% to 90%, noncondensing |
| Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F) |
| Nonoperating/Storage relative humidity | 5% to 95%, noncondensing |
| Acoustic | Pressure: 44.4 dB; ISO 7779 |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
| Emissions | FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR 22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A |
