Sold out
JG938A
Model: JG938A – HP 5130 EI Switches
Details: HP 5130-24G-2SFP+-2XGT EI Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
JG938A Overview

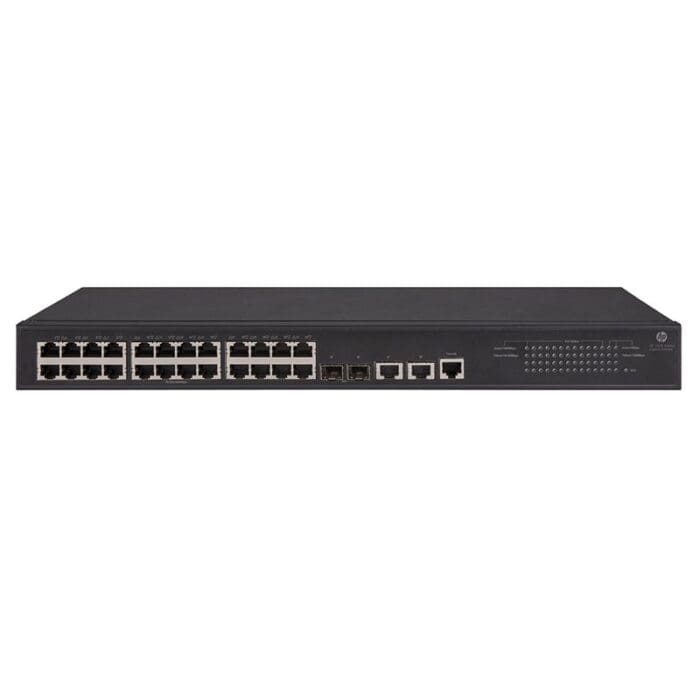

Quick Specs Figure 1 shows the appearance of JG938A.
Table 1 shows the Quick Specs.
| Type | HP 5130-24G-2SFP+-2XGT EI Switch |
| I/O ports and slots | · 24 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only· 2 x SFP+ fixed 1000/10000 SFP+ ports· 2 x RJ-45 1/10GBASE-T ports |
| Additional ports and slots | 1 x RJ-45 serial console port |
| Power supplies | N/A |
| Memory and processor | · 1 GB SDRAM· 512 MB flash· packet buffer size: 1.5 MB |
| Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
| Management | IMC – Intelligent Management Center; command-line interface; Web browser; SNMP Manager |
| Dimensions (H x W x D) | 4.37 x 44 x 16 cm (1.72 x 17.32 x 6.3 in) (1U height) |
| Weight | 3 kg (6.61 lb) |
| Acoustic | Low-speed fan: 19 dBHigh-speed fan: 44.5 dBISO 7779 |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 10% to 90%, noncondensing |
| Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F) |
| Nonoperating/Storage relative humidity | 5% to 95%, noncondensing |
| Frequency | 50/60 Hz |
| Maximum heat dissipation | 68/116 BTU/hr (71.74/122.38 kJ/hr) for AC power |
| AC voltage | 100 – 240 V ac |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
| Emissions | EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3-2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A |
| Immunity | · Generic: EN 55024· ESD: EN300 386 |
