Sold out
JG939A
Model: JG939A – HP 5130 EI Switches
Details: HP 5130-48G-2SFP+-2XGT EI Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
JG939A Overview

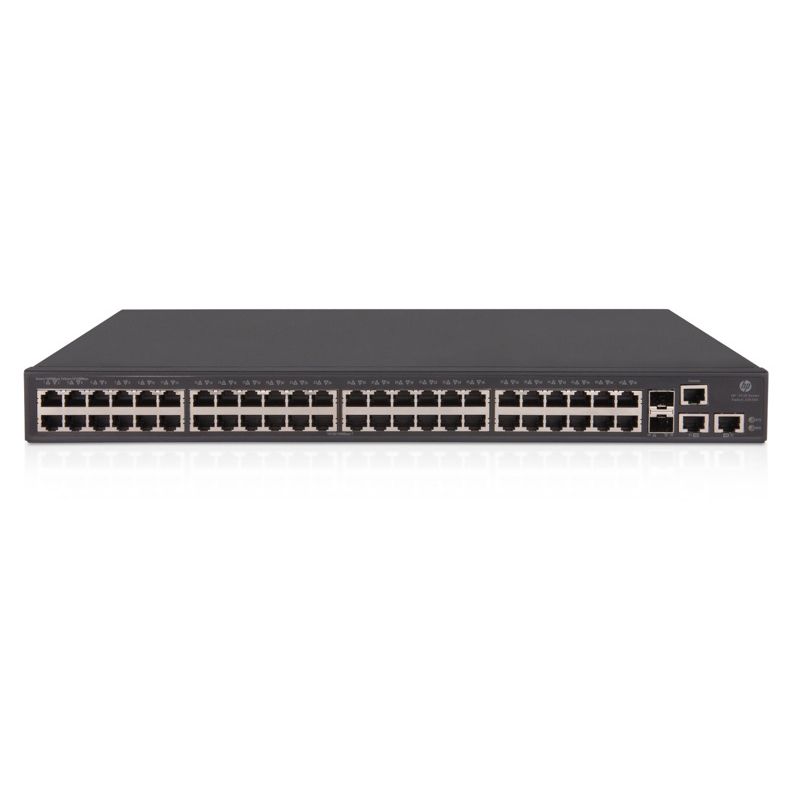

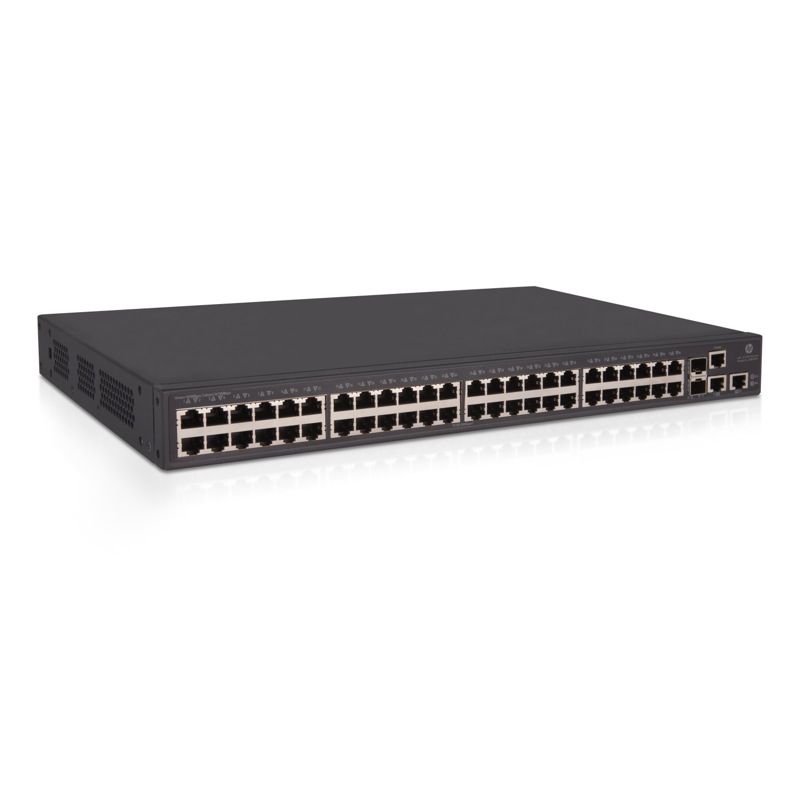

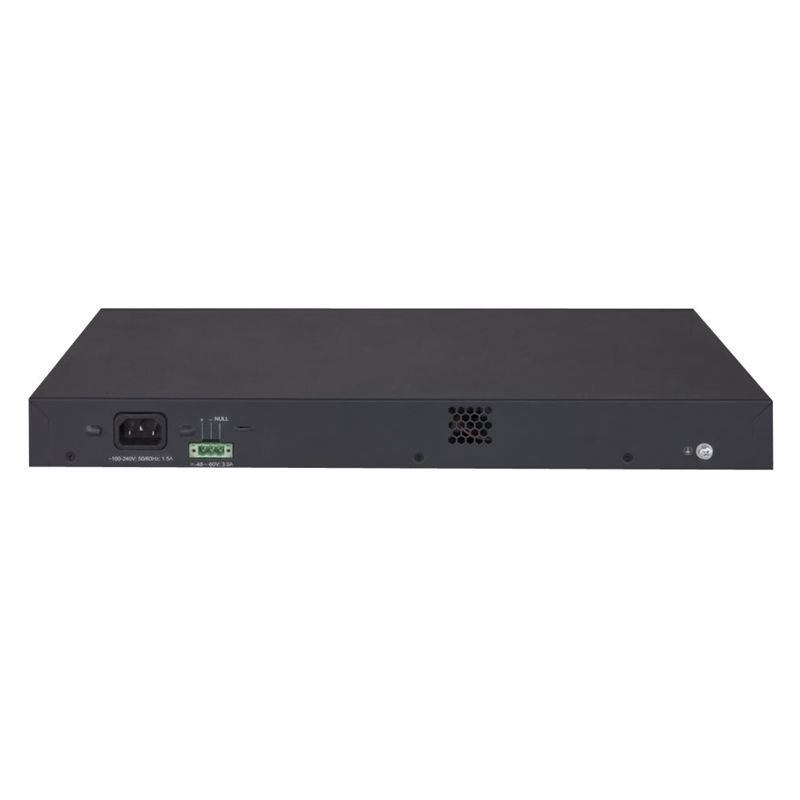

Quick Specs Figure 1 shows the appearance of JG939A.
Table 1 shows the Quick Specs.
| Type | HPE 5130 48G 2SFP+ 2XT EI Switch |
| I/O ports and slots | · 48 x 10/100/1000 ports,· 2 x 1GbE / 10GbE SFP+ ports,· 2 x RJ 45 1GbE / 10GBASE T ports. |
| Additional ports and slots | 1 x RJ-45 serial console port |
| Power supplies | N/A |
| Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
| Management | IMC – Intelligent Management Center; command-line interface; Web browser; SNMP Manager |
| Dimensions (H x W x D) | 4.37 x 44 x 27 cm (1.72 x 17.32(w) x 6.3 in) (1U height) |
| Weight | 5 kg (11.02 lb) |
| Acoustic | Low-speed fan: 43.1 dBHigh-speed fan: 53.4 dB |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 10% to 90%, noncondensing |
| Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F) |
| Nonoperating/Storage relative humidity | 5% to 95%, noncondensing |
| Frequency | 50/60 Hz |
| Maximum heat dissipation | 122/184 BTU/hr (128.71/194.12 kJ/hr) |
| AC voltage | 100 – 240 V ac-48 to -60 V dc |
| Safety | UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
| Emissions | EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3-2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A |
| Immunity | · Generic: EN 55024· ESD: EN300 386 |
