JG941A
Model: JG941A – HP 5130 EI Switches
Details: HP 5130-48G-PoE+-2SFP+-2XT EI Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
JG941A Overview

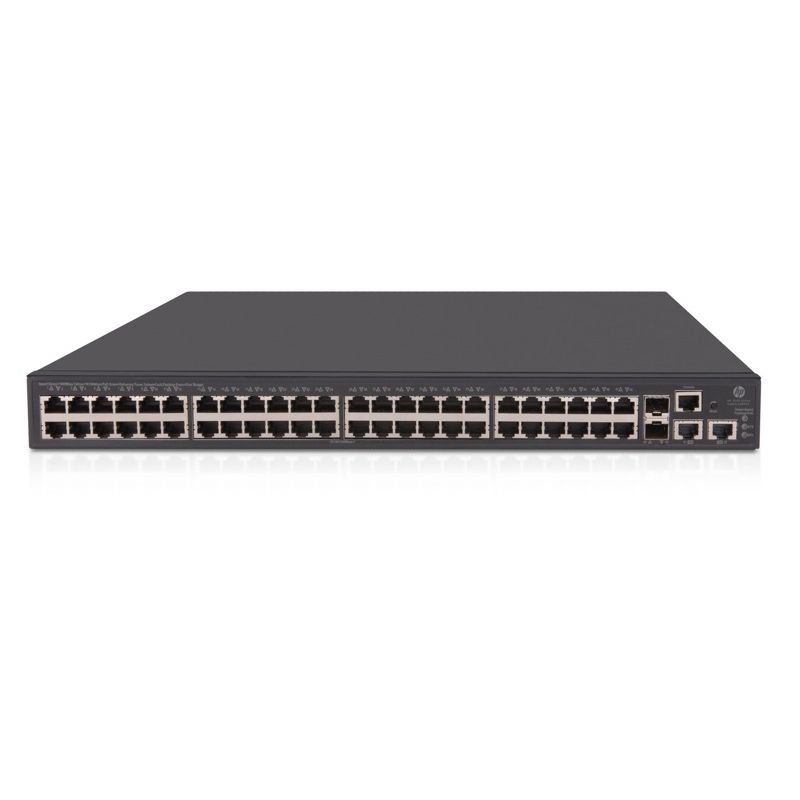

Quick Specs Figure 1 shows the appearance of JG941A.
Table 1 shows the Quick Specs.
| Type | HPE FlexNetwork 5130 48G POE+ 2SFP+ 2XGT (370W) EI Switch |
| Differentiator | · Gigabit Ethernet switch with 48 10/100/1000BASE-T, 2 SFP+ and 2 10GBASE-T ports· Intelligent Resilient Framework (IRF) technology, static and RIP Layer 3 routing, and PoE/PoE+, supported |
| Ports | · 48 x RJ-45 autosensing 10/100/1000 ports· 2 x SFP+ fixed 1000/10000 SFP+ ports· 2 x RJ-45 1/10GBASE-T ports |
| Memory and processor | · 1 GB SDRAM· Packet buffer size: 3 MB· 512 MB flash |
| Latency | 1000 Mb Latency: < 5 µs10 Gbps Latency: < 1.5 µs |
| Throughput | up to 130.9 Mpps |
| Routing/switching capacity | 176 Gbps |
| PoE capability | 370 W PoE+ |
| Stacking capabilities | IRF9 switches |
| Management features | IMC – Intelligent Management CenterCommand-line interfaceWeb browserSNMP manager |
| Input voltage | 100 – 240 VAC, rated-54 to -57 VDC, rated (depending on power supply chosen) |
| Operating temperature range | -5 to 45°C |
| Operating humidity range | 10 to 90% (noncondensing) |
| Power consumption | 70 W (maximum) |
| Heat dissipation | 147 / 1603 BTU/hr (155.08 / 1691.17 kJ/hr) |
| Minimum dimensions (W x D x H) | 17.32 x 16.54 x 1.72 in (43.99 x 42.01 x 4.37 cm) |
| Weight | 15.43 lb (7 Kg) |
