Name: JH148A
SKU: JH148A
Price: 4399.45 USD
Availability: InStock

JH148A

Model: JH148A – HP 5510 HI Switch
Details: HPE 5510 48G PoE+ 4SFP+ HI Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

JH148A Overview

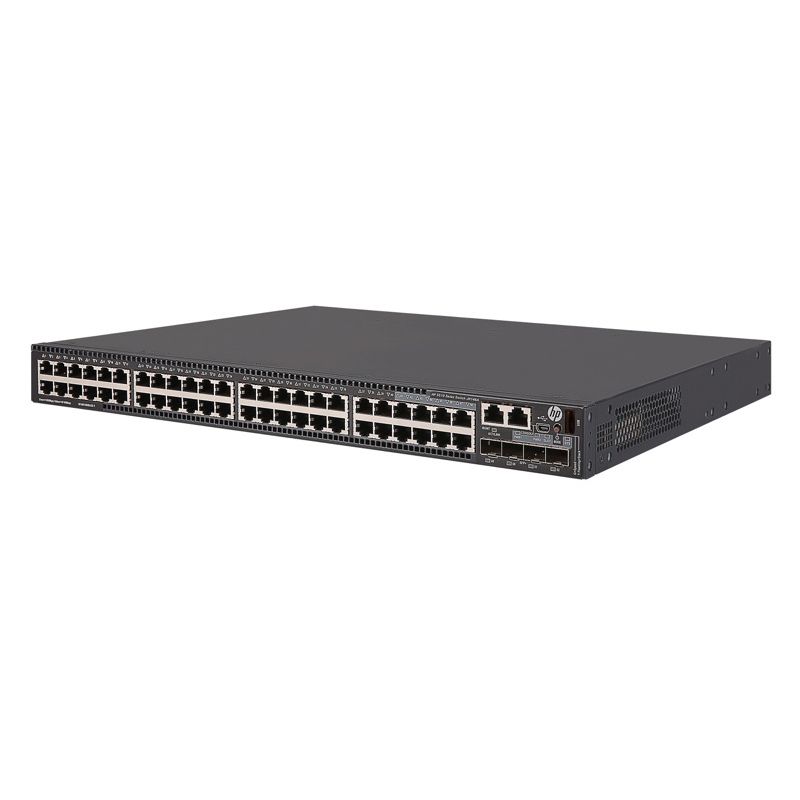

Quick Specs Figure 1 shows the appearance of JH148A.

Table 1 shows the Quick Specs.

Type	HPE FlexNetwork 5510 48G PoE+ 4SFP+ HI 1-slot Switch
I/O ports and slots	· 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)· Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 8 support MACSec· 4 SFP+ 10GbE ports· 1 port expansion module slot· Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module
Additional ports and slots	· 1 dual-personality (RJ-45 or USB micro-B) serial console port· 1 RJ-45 out-of-band management port· 1 USB 2.0
1000 Mb Latency	< 5 μs
10 Gbps Latency	< 3 μs
Throughput	up to 250 Mp/s
Routing/Switching capacity	336 Gb/s
Routing table size	IPv4 : 32768 entriesIPv6 : 16384 entries
MAC address table size	32768 entries
Dimensions (W x D x H)	43.99 x 46 x 4.37 cm (17.32 x 18.11 x 1.72 in)
Weight	12.5 kg (27.56 lb)
Frequency	50/60 Hz
Maximum heat dissipation	2286 BTU/hr (2411.73 kJ/hr), Heat dissipation ranges from 256 BTU/hr to 6142 BTU/hr, depending on power supply configuration
Voltage	100 – 240 V ac, rated (90 – 264 Vac, max) (depending on power supply chosen)
Maximum power rating	670 W
Idle power	75 W
PoE power	1440 W PoE+
Operating temperature	0°C to 45°C (32°F to 113°F)
Operating relative humidity	10% to 90%, noncondensing
Nonoperating/Storage temperature	-40°C to 70°C (-40°F to 158°F)
Nonoperating/Storage relative humidity	5% to 95%, noncondensing
Acoustic	Low-speed fan: 57.6 dB, High-speed fan: 66.9 dBISO 7779
Safety	UL 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1EN 60950-1CAN/CSA-C22.2 No. 60950-1FDA 21 CFR Subchapter JROHS ComplianceAS/NZS 60950-1GB 4943 EAC (EurAsian Conformity Certification)
Emissions	EMC Directive 2004/108/ECFCC (CFR 47, Part 15) Class AEN 61000-4-11:2004ANSI C63.4-2009EN 61000-3-3:2008VCCI V-3/2012.04EN 61000-3-2:2006+A1:2009+A2:2009EN 61000-4-3:2006EN 61000-4-4:2012; EN 61000-4-5:2006EN 61000-4-6:2009CISPR 22:2008 Class AEN 55022:2010 Class AEN 61000-4-29: 2000CISPR 24:2010EN 300 386 V1.6.1VCCI V-3/2013.04 Class A
Immunity	Generic: EN 55024ESD: EN300 386
Management	IMC – Intelligent Management CenterCommand-line interfaceWeb browserSNMP manager
