Sold out
JH178A
Model: JH178A – HPE FlexFabric 5900 Switches
Details: HPE FlexFabric 5930 2QSFP+ 2-slot Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
JH178A Overview

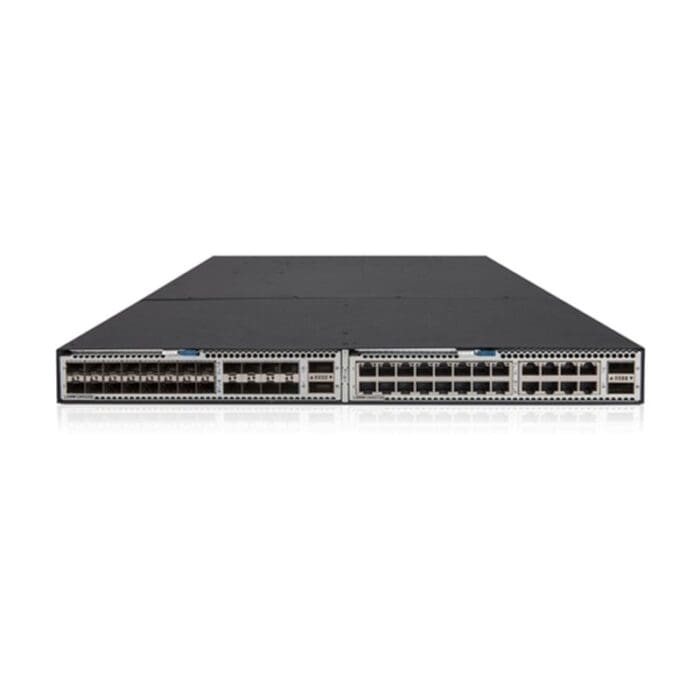

Quick Specs Figure 1 shows the appearance of JH178A.
Table 1 shows the Quick Specs.
| Product Name | HPE FlexFabric 5930 2QSFP+ 2-slot Switch |
| Product Model | JH178A |
| Brand | HPE |
| Device Type | Switch – 2 ports – L3 – Managed |
| Enclosure Type | Rack-mountable 1U |
| Performance | 1.44 Tbps switching capacity; 1071 Mpps Throughput |
| Ports | 2 x 40 Gigabit QSFP+ (uplink) |
| MAC Address Table Size | 288K entries |
| Jumbo Frame Support | Up to 9600 bytes |
| Routing Protocol | Static, RIP, OSPF, BGP, IS-IS, MPLS |
| Features | Flow control, layer 3 switching, layer 2 switching, DHCP support, VPN support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, DiffServ support, IPv6 support, High Availability, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, STP Root Guard, Uni-Directional Link Detection (UDLD), Energy Efficient Ethernet, Management Information Base (MIB) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1ae, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.3az, IEEE 802.1ab (LLDP) |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Power Supply | Included |
| Power Over Ethernet (PoE) | Not Supported |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.32 in x 18.98 in x 1.72 in |
| Operating Temperature Range | 32°F to 113°F |
| Storage Temperature Range | -40°F to 158°F |
| Operating Humidity Range | 5% to 95% (non-condensing) |
