Name: JL002A
SKU: JL002A
Price: 10052.90 USD
Availability: InStock

JL002A

Model: HPE JL002A – Aruba 54xx Bundle Units
Details: Aruba 5406R 8XGT PoE+ / 8SFP+ v3 zl2 Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

JL002A Overview

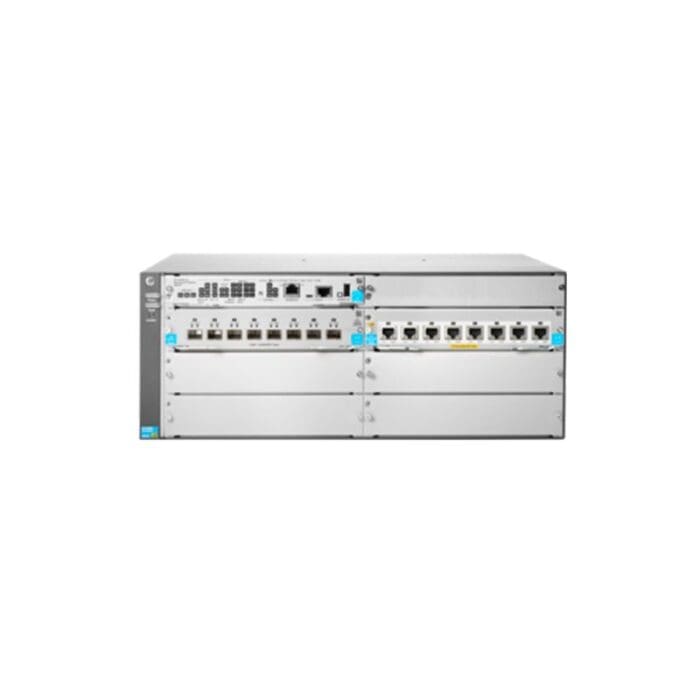

Quick Specs Figure 1 shows the appearance of JL002A.

Table 1 shows the Quick Specs.

Type	HPE 5406R 8-port 1/2.5/5/10GBASE-T PoE+/8-port SFP+ (No PSU) v3 zl2 Switch
Included accessories	1 HPE 5400R zl2 Management Module (J9827A)1 HPE 5406R zl2 Switch Fan Tray (J9831A)1 HPE 8-port 1G/10GbE SFP+ MACsec v3 zl2 Module (J9993A)1 HPE 8-port 1/2.5/5/10GBASE-T PoE+ MACsec v3 zl2 Module (J9995A)
I/O ports and slots	8 RJ-45 HPE Smart Rate Multi-Gigabit ports8 open 10GbE SFP+ transceiver slots4 open module slotsSupports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or48 HPE Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination
Power supplies	2 power supply slots1 minimum power supply required (ordered separately)
Fan Tray	Includes: 1 x J9831A1 fan tray slot
Dimensions (W x D x H)	17.5(w) x 17.75(d) x 6.9(h) in. (44.45 x 45.09 x 17.53 cm) (4U height)
Weight	28.11 lb (12.75 kg)
v3 Gigabit Module	Dual ARM® Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
v2 Gigabit Module	ARM 11 @ 450 MHz; Packet buffer size: 18 MB internal
v3 10G Module	Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
v2 10G Module	ARM 11 @ 550 MHz; Packet buffer size: 18 MB internal
v3 40G Module	Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB internal
Management Module	Freescale P2020 dual core @ 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM
Mounting and enclosure	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included);Horizontal surface mounting only
1000 Mb Latency	< 2.8 µs (FIFO 64-byte packets)
10 Gbps Latency	< 1.8 µs (FIFO 64-byte packets)
40 Gbps Latency	< 1.5 µs (FIFO 64-byte packets)
Throughput	up to 571.4 Mpps
Routing/Switching capacity	960 Gbps
Switch fabric speed	1015 Gbps
Routing table size	10000 entries (IPv4), 5000 entries (IPv6)
MAC address table size	64000 entries
Operating temperature	32°F to 113°F (0°C to 45°C); 0°C to 40°C with J8177C transceiver installed, 0°C to 35°C withFIPS Opacity Shield installed
Operating relative humidity	15% to 95% @ 113°F (45°C), noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	15% to 95% @ 149°F (65°C), noncondensing
Altitude	Up to 10,000 ft (3 km)
Acoustic	Power: 44 dB, Pressure: 31.7 dB ISO 7779, ISO 9296
Frequency	50/60 Hz
80plus.org Certification	Gold
Description	Does not come with power supply. Two power supply slots are available; three different power suppliesare available. See power supply products for additional specifications.
Maximum heat dissipation	2450 BTU/hr (2584.75 kJ/hr), (max. non-PoE);3700 BTU/hr (3903 kJ/hr), (max. using PoE)
Voltage	110–127/200–240 VAC, rated (depending on power supply chosen)
Idle power	215 W
Notes	Supported 1G SFP transceivers are revision “B” or later (product number ends with the letter “B” or later;For example, J9142B, J8177C). HPE Smart Rate Multi-Gigabit Cabling; 1000BASE-T, 2.5 Gigabit, and5 Gigabit Ethernet: Category 5e or better UTP or STP; 10GBASE-T: Category 6 or better(CAT6A recommended) UTP or STP
Safety	CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950
Emissions	FCC part 15 Class A; EN 55022/CISPR 22 Class A
ImmunityENESDRadiatedEFT/BurstSurgeConductedPower frequency magnetic fieldHarmonicsFlicker	EN 55024, CISPR 24IEC 61000-4-2; 4 kV CD, 8 kV AD;HPE ENV. 765.002IEC 61000-4-3; 3 V/mIEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) IEC 61000-4-5; 1 kV/2 kV AC, 1 kV signal, 0.5 kV DCIEC 61000-4-6; 3 VrmsIEC 61000-4-8; 1 A/m, 50 or 60 HzIEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periodsEN 61000-3-2, IEC 61000-3-2EN 61000-3-3, IEC 61000-3-3
Management	IMC—Intelligent Management Center; Command-line interface; Web browser; Configuration menu;Out-of-band management (RJ-45 Ethernet); SNMP Manager; Out-of-band management(serial RS-232C or micro USB)AirWave Network Management
