JL070A
Model: HPE JL070A – Aruba 2530 Series Switches
Details: JL070A is the switch with 8-PoE+ Internal Power Supply. The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
JL070A Overview

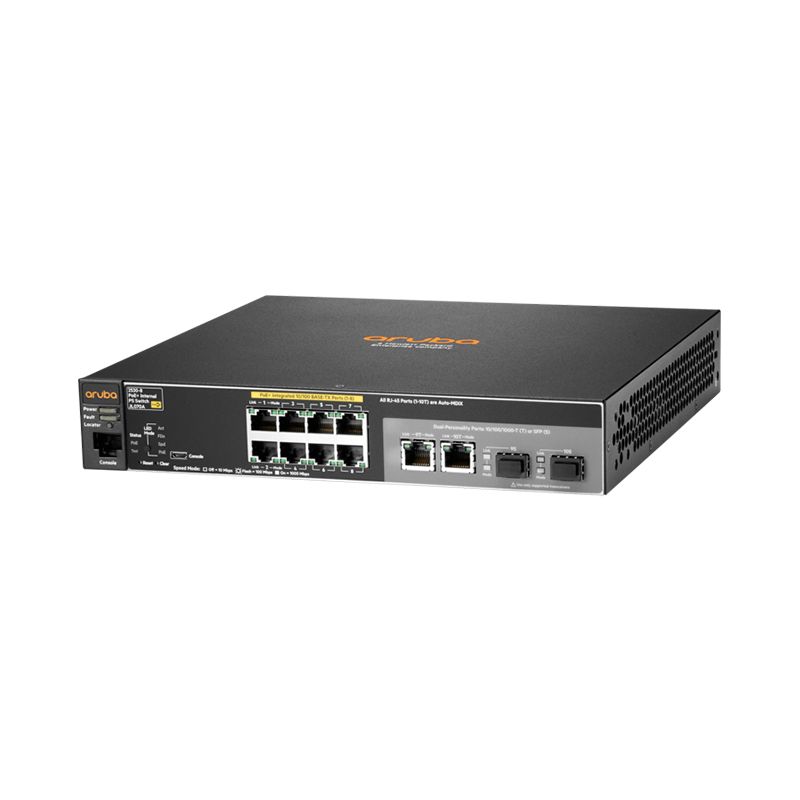

Quick Specs Figure 1 shows the appearance of JL070A.
Table 1 shows the Quick Specs.
| Dimensions | 10(w) x 9.68(d) x 1.75(h) in(25.4 x 24.59 x 4.45 cm)(1U height) |
| 100 Mb Latency | < 1.3 µs (LIFO 64-byte packets) |
| 1000 Mb Latency | < 1.3 µs (LIFO 64-byte packets) |
| Throughput | up to 4.1 Mpps (64-byte packets) |
| Switching capacity | 5.6 Gbps |
| MAC address table size | 16000 entries |
| Operating temperature | 32°F to 113°F (0°C to 45°C) |
| Operating relativehumidity | 15% to 95% @ 104°F (40°C),noncondensing |
| Nonoperating/Storagetemperature | -40°F to 158°F (-40°C to 70°C) |
| Nonoperating/Storagerelative humidity | 15% to 90% @ 149°F (65°C),noncondensing |
| Altitude | up to 10,000 ft (3 km) |
| Acoustic | Power: 0 dB, Pressure: 0 dB |
| Frequency | 50/60 Hz |
| Maximum heat dissipation | 29 BTU/hr (30.6 kJ/hr), (switch only: 29 BTU/hr; combined switch + max. PoE devices: 239 BTU/hr) |
| AC voltage | 100 – 127/200 – 240 VAC |
| Current | 0.9/0.5 A |
| Maximum power rating | 70.2 W |
| Idle power | 5.3 W |
| PoE power | 67 W PoE |
| Notes | Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE power is the total power budget available to all PoE ports. |
