JL309A
Model: Aruba JL309A – Aruba Switches Transceivers
Details: Aruba 100G QSFP28 MPO SR4 MMF XCVR
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
JL309A Overview

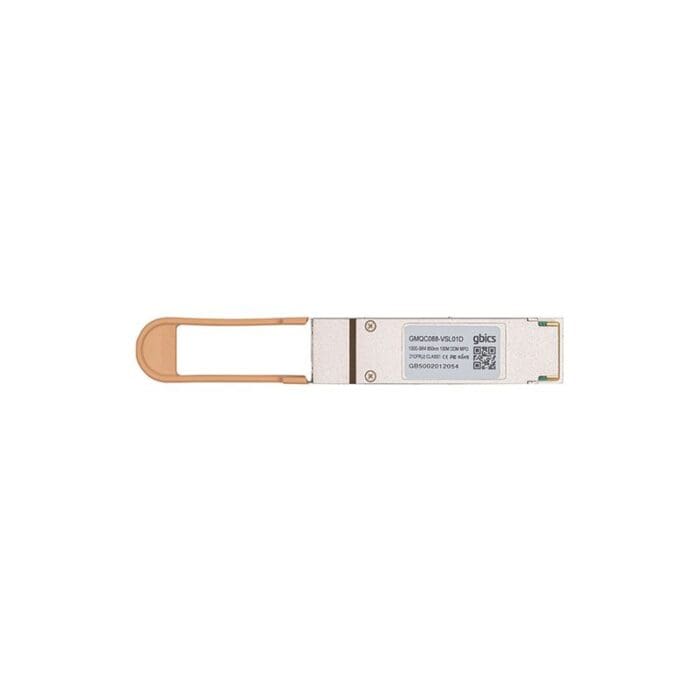

Quick Specs Figure 1 shows the appearance of JL309A.
Table 1 shows the Quick Specs.
| Product Model | JL309A |
| Brand | Aruba |
| Product Type | 100G QSFP28 MPO SR4 MMF XCVR |
| Data Rate | 100 Gbps |
| Interface | QSFP28 |
| Transmission Mode | Multi-mode fiber (MMF) |
| Connector Type | MPO |
| Optical Components | VCSEL |
| Max Cable Distance | 100 meters |
| Wavelength | 850 nm |
| Operating Temperature Range | 0°C to 70°C |
| Power Supply Voltage | 3.3V |
| Max Power Consumption | 3 Watts |
| Hot-Pluggable | Yes |
| Diagnostic Monitoring | Yes |
| Digital Optical Monitoring (DOM) | Yes |
| Ethernet Compliance | 100GBASE-SR4 |
| Form Factor | QSFP28 |
| Dimensions | 14.5mm × 17mm × 75mm |
