JL321A
Model: HPE JL321A – Aruba 2930M Series Switches
Details: Aruba 2930M 48G 1-slot Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
JL321A Overview

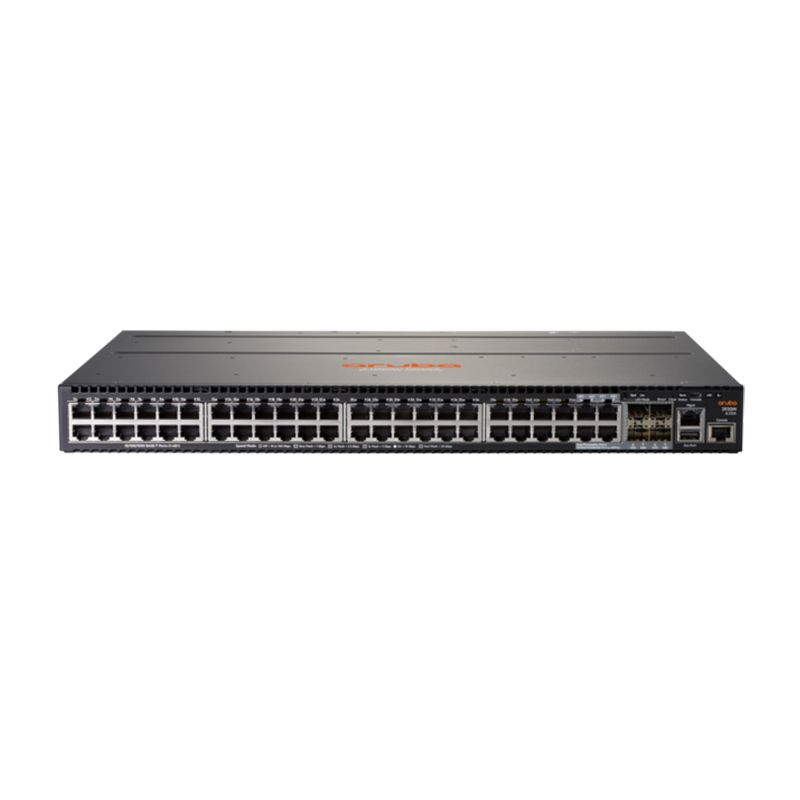

Quick Specs Figure 1 shows the appearance of JL321A.
Table 1 shows the Quick Specs.
| Specification | Description |
| Model | Aruba 2930M 48G 1-slot Switch |
| Number of Ports | 48 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) |
| SFP/SFP+ Slots | 4 x SFP+ fixed 1000/10000 SFP+ ports (IEEE 802.3z Type 1000BASE-X, IEEE 802.3ae Type 10GBASE-X) |
| Switching Capacity | 176 Gbps |
| Throughput | 130.9 Mpps |
| Forwarding Rate | 176 Mpps |
| Management Interface | 1 x RJ-45 serial console port, 1 x USB 2.0 port (type A) |
| Power Supply | Internal Power Supply, AC 120/230 V (50/60 Hz) |
| Power Consumption | 68.7 Watts (maximum) |
| Operating Temperature | 0��C to 45��C |
| Operating Humidity | 15% to 95%, non-condensing |
| Dimensions (H x W x D) | 4.39 cm x 44.2 cm x 32.26 cm |
| Weight | Not applicable |
| Layer Support | Layer 2 and Layer 3 |
| Stacking Capability | Virtual and Distributed |
| Stacking Bandwidth | 480 Gbps |
| Security Features | ACLs, RADIUS, TACACS+, SSH v2, SSL/TLS, IEEE 802.1X Network Access Control |
| Management Features | SNMP v1/v2c/v3, Web-based GUI, CLI, DHCP, SSH, RMON, sFlow, RESTful API |
| Mounting Options | Rack-mountable, Desktop, Under-desk, Wall-mountable |
| Warranty | Lifetime limited warranty |
