-5%
JL322A
Model: HPE JL322A – Aruba 2930M Series Switches
Details: Aruba 2930M 48G PoE+ 1-slot Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
JL322A Overview

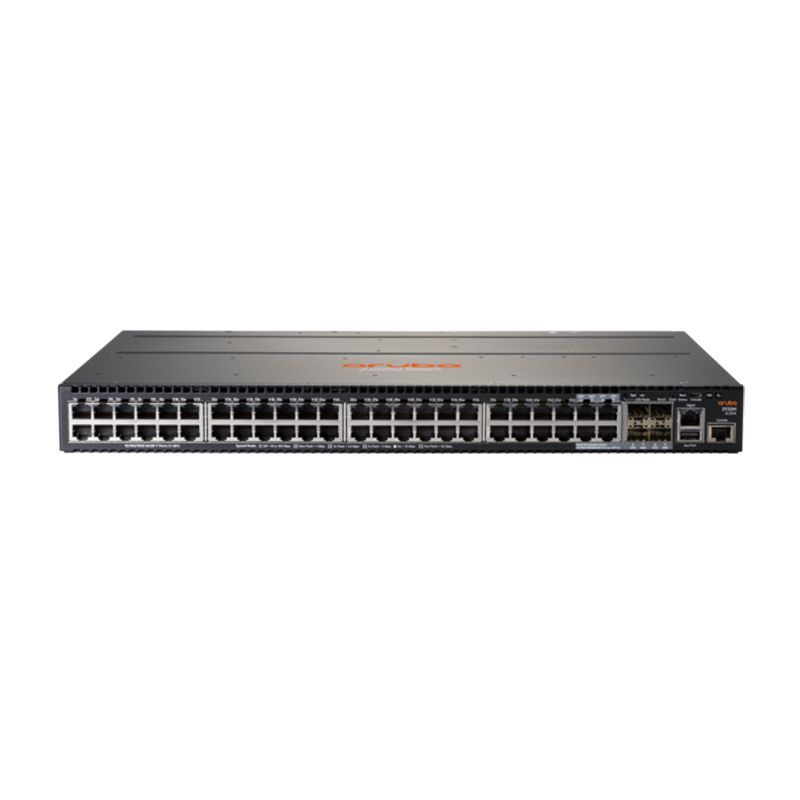

Quick Specs Figure 1 shows the appearance of JL322A.
Table 1 shows the Quick Specs.
| Ports | 44 x10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+4 x10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) PoE+1 xMicro-USB1 xUSB Type-A1 x10/100 Mb/s Ethernet (RJ45) |
| Layer Services Supported | Layer 3 Support |
| Supported Protocols | Auto-MDIX/MDI |
| MAC Address Table Size | 32K |
| Supported IEEE Standards | 802.3, 802.3ab, 802.3at, 802.3u |
| Forwarding Rate | 112 Mpps |
| Switching Bandwidth | 176 Gb/s |
| Packet Buffer | 12.38 MB |
| Flash Memory | 4 GB |
| Processor | 1016 MHz ARM Cortex A9 Dual-Core |
| Memory | 1 GB DDR3 |
| Power Draw | 1140.00 W (Max)40.00 W (Idle)7.0 W (Standby) |
| Operating Temperature | 32 to 131°F / 0 to 55°C |
| Operating Humidity | 15 to 95% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 90% |
| Operating Altitude | 10,000′ / 3048Â m |
| Storage Altitude | 15,000′ / 4572Â m |
| Noise Level | 28.9 dB |
| Cooling System | Fan |
| Rack Form Factor | 1 RU |
| Dimensions | 17.42 x 12.77 x 1.73″ / 44.25 x 32.43 x 4.39Â cm |
