-5%
JQ074A
Model: JQ074A – HPE FlexFabric 5900 Switch Series
Details: HPE FlexFabric 5945 48SFP28 8QSFP28 Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
JQ074A Overview

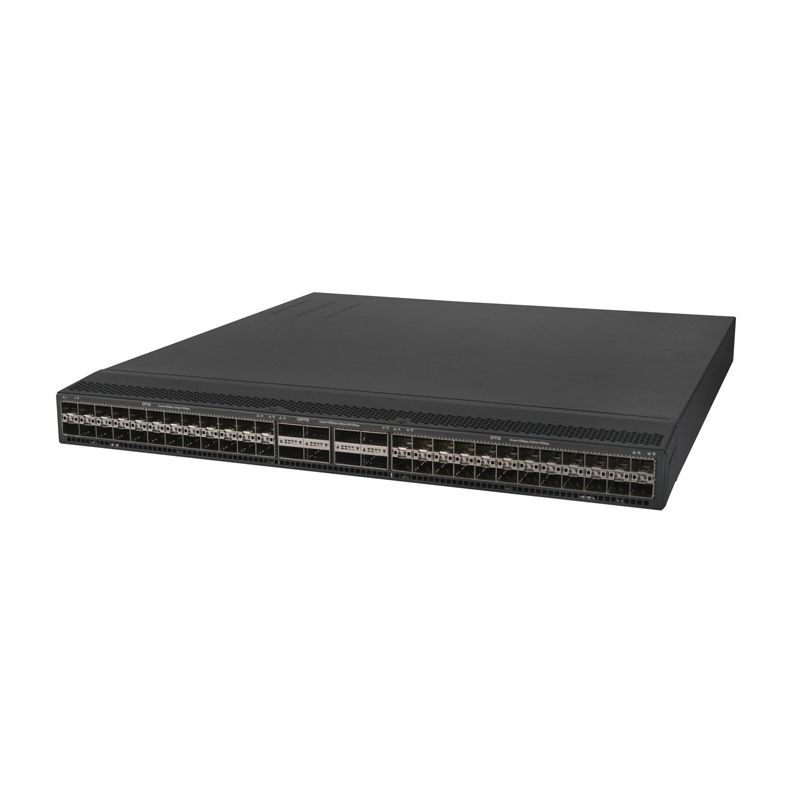

Quick Specs Figure 1 shows the appearance of JQ074A.
Table 1 shows the Quick Specs.
| Brand | HPE |
| Product Name | HPE FlexFabric 5945 48SFP28 8QSFP28 Switch |
| Model Number | JQ074A |
| Form Factor | 1U height, Rack mountable |
| Ports | 48 SFP28 ports and 8 QSFP28 ports |
| Port Speed | SFP28: 1/10/25GbE, QSFP28: 40/100GbE |
| Switching Capacity | Up to 3.6 Tbps |
| Forwarding Rate | Up to 2504 Mpps |
| Memory | 4 GB |
| Flash Memory | 1 GB |
| Power Supply | Dual hot-swappable power supplies |
| Power Consumption | Max. 450W |
| MAC Address Table Size | 288K |
| Latency | 450ns |
| Layer Supported | Layer 2/3 |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Management | Web-based management, SNMP, RMON |
| Security Features | Access Control Lists (ACLs), IEEE 802.1X, Secure Shell (SSH), SNMPv3 |
| Routing Protocols | BGP, OSPF, RIP |
| Compliance | Emissions: Class A; Safety: UL Listed |
| Warranty | Limited Lifetime Warranty |
