JQ076A
Model: JQ076A – HPE FlexFabric 5900 Switch Series
Details: HPE FlexFabric 5945 4-slot Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
JQ076A Overview

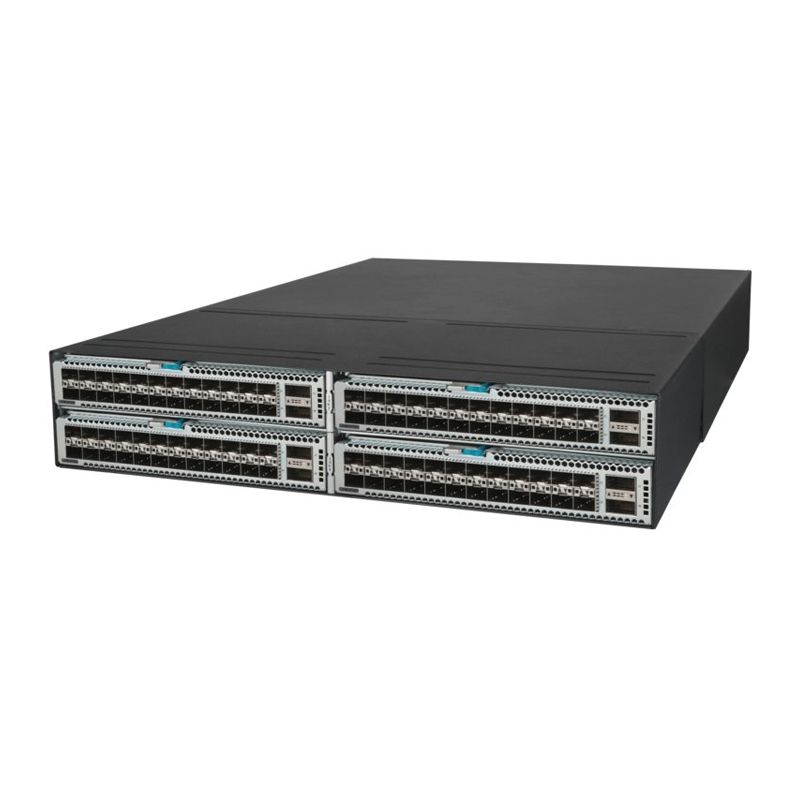

Quick Specs Figure 1 shows the appearance of JQ076A.
Table 1 shows the Quick Specs.
| Brand | HPE |
| Model | JQ076A |
| Product Name | HPE FlexFabric 5945 4-slot Switch |
| Device Type | Switch – 4 slots – Managed – Stackable |
| Form Factor | Rack-mountable 1U |
| Ports | Provides 48x 1/10GbE SFP+ and 6x 40GbE QSFP+ ports or 48x 10GbE and 4x 100GbE using QSFP28 ports (module dependent) |
| Performance | Up to 6 Tbps system switching capacity |
| Latency | Low latency for 10GbE and 40GbE |
| MAC Address Size | 288,000 MAC addresses |
| Routing/Switching Capacity | Up to 2,000 Gbps (2 Tbps) |
| Memory | 4 GB control plane memory, 2 GB data plane memory |
| Flash Memory | 1 GB |
| Operating System | Comware v7 |
| Power Supply | Dual power supply units (1+1 redundancy) |
| Management | IMC – Intelligent Management Center, CLI, SNMP, RMON, sFlow, and Web UI |
| Virtualization | Support for HPE’s Intelligent Resilient Framework (IRF) technology |
| Security Features | Access control lists (ACLs), Source-port filtering, RADIUS/TACACS+, SSL for GUI management |
| Warranty | Limited Lifetime Warranty |
| Dimensions (WxDxH) | 17.32 x 18.98 x 1.72 in (44 x 48.2 x 4.36 cm) |
| Certifications | UL 60950-1, EN 60825-1 Safety of Laser Products-Part 1, EN 60950-1 / IEC 60950-1 |
| Stackable | Yes |
