-5%
LC-LC-1-Meter-Singlemode-Fiber-Optic-Cable
Model: LC-LC-1METER
Details: Fiber Optic Cable, LC/LC, Single-mode – 1 Meter (9/125 Type)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
LC-LC-1-Meter-Singlemode-Fiber-Optic-Cable Overview

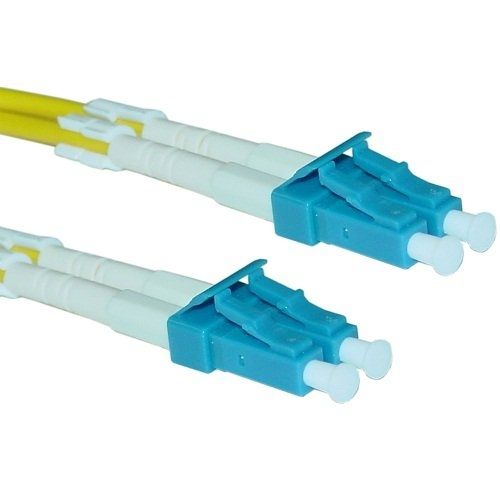

Quick Specs Figure 1 shows the appearance of LC-LC-1-Meter-Singlemode-Fiber-Optic-Cable.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Product Name | LC-LC-1-Meter-Singlemode-Fiber-Optic-Cable |
| Cable Type | Fiber Optic |
| Connector Type | LC/LC |
| Mode | Single-mode |
| Cable Length | 1 Meter |
| Core/Cladding Diameter | 9/125 ??m |
| Wavelength | 1310 nm / 1550 nm |
| Insertion Loss | < 0.3 dB (Typical) |
| Return Loss | > 50 dB |
| Cable Jacket | LSZH (Low Smoke Zero Halogen) |
| Operating Temperature | -20??C to 70??C |
| Storage Temperature | -40??C to 85??C |
| RoHS Compliant | Yes |
| Max Tensile Load | 100 N |
| Minimum Bend Radius | 1.5 cm (Installed) / 3 cm (Loaded) |
| Attenuation | < 0.35 dB/km @ 1310 nm / < 0.22 dB/km @ 1550 nm |
| Buffer Diameter | 900 ??m |
| Fiber Type | OS2 |
| Application | Telecommunications, Data Centers, LANs |
| Compliance Standards | IEC 60793-2-50, ISO/IEC 11801, TIA/EIA-568 |
