Sold out
LE0DG48VEA00
Model: LE0DG48VEA00 Huawei S9300 Series Switch Line Card
Details: 48-Port 10/100/1000BASE-T POE Interface Card(EA,RJ45,POE)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
LE0DG48VEA00 Overview

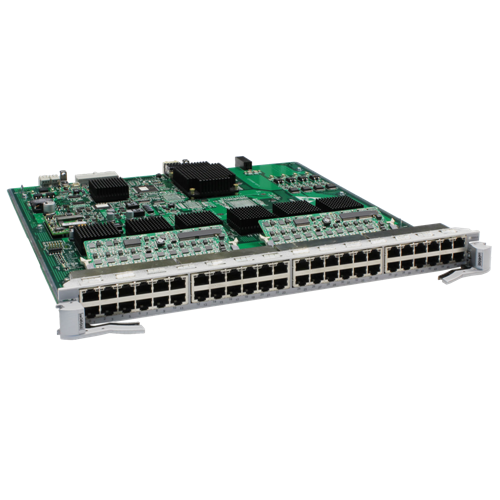

Quick Specs Figure 1 shows the appearance of LE0DG48VEA00.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | LE0DG48VEA00 |
| Port Count | 48 |
| Port Type | 10/100/1000BASE-T |
| Interface Type | RJ45 |
| Power over Ethernet (PoE) | Yes |
| Card Type | Interface Card |
| Application | Enterprise Networking |
| Operating Temperature | -5°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (HxWxD) | 30 mm x 398 mm x 204 mm |
| Power Consumption | Max 500W |
| MTBF | 300,000 hours |
| MAC Address Table Size | 16K |
| Switching Capacity | 256 Gbps |
| Forwarding Capacity | 190 Mpps |
| LED Indicators | Link/Act, PoE |
| Compliance | IEEE 802.3af/at |
| Warranty | 1 Year |
