LE0KS9306
Model: LE0KS9306 Huawei S9300 Series Switch
Details: S9306 Assembly Chassis
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
LE0KS9306 Overview

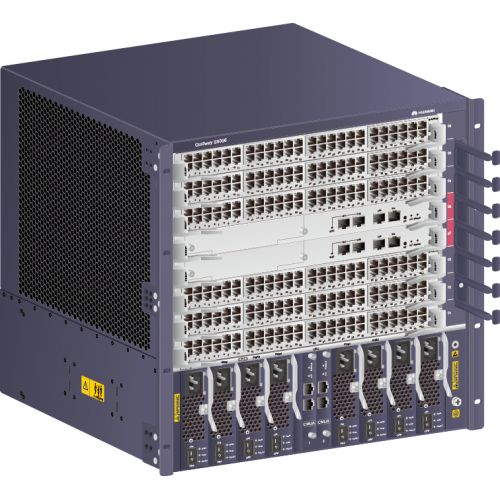

Quick Specs Figure 1 shows the appearance of LE0KS9306.
Table 1 shows the Quick Specs.
| Packet forwarding rate | 2880Mpps |
| Switching capacity | 3.84Tbps |
| Service slot quantity | 6 |
| User management | Unified user management802.1x, MAC, and Portal authenticationsCharging based on traffic volume and online durationUser authorization based on user groups, domains, and time ranges |
| VLAN | Access, trunk, and hybridDefault VLANVLAN switchingQinQ and selective QinQMAC-based VLAN assignment |
| MAC address | MAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on sourceMAC addresses MAC address limiting based on ports and VLANs |
| STP/ERPS | STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)BPDU protection, root protection, and loop protectionBPDU tunnelG.8032 Ethernet Ring Protection Switching (ERPS) |
| IP routing | IPv4 dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGPIPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ |
| Multicast | IGMPv1/v2/v3 and IGMP v1/v2/v3 snoopingPIM-DM, PIM-SM, and PIM-SSMMSDP and MBGPPrompt leaveMulticast traffic controlMulticast querierMulticast protocol packet suppressionMulticast CACMulticast ACL |
| MPLS | Basic MPLS functionsMPLS OAMMPLS TEMPLS VPN/VLL/VPLS |
| Reliability | LACP and inter-chassis E-TrunkVRRP and BFD for VRRPBFD for BGP/IS-IS/OSPF/static routeNSF and GR for BGP/IS-IS/OSPF/LDPTE FRR and IP FRREthernet OAM in compliance with IEEE 802.3ah and 802.1ag (hardware-level) ITU-Y.1731DLDP |
| QoS | Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p fieldsACL, CAR, and actions including Remark and ScheduleQueuing algorithms, such as SP, WRR, DRR, SP+WRR, and SP+DRRCongestion avoidance mechanisms, including WRED and tail dropH-QOSTraffic shaping |
| Configuration and maintenance | iPCA, monitor network quality for any service flow at any network node, at any time, and without extra costsTerminal access services such as console port login, Telnet, and SSHNetwork management protocols, such as SNMPv1/v2/v3File uploading and downloading through FTP and TFTPBootROM upgrade and remote in-service upgradeHot patchesUser operation logs |
| Security and user management | 802.1x authentication and Portal authenticationNACRADIUS and HWTACACS authentication for login usersCommand line authority control based on user levels (unauthorized users cannot use commands)Defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storms, and traffic flooding attacks1K CPU queuesPing and tracerouteRMON |
| Security protection | FirewallNetwork Address Translation (NAT)IPSec, SSL VPNIntrusion Protection System (IPS)Load balancing Analog Digital Conversion (ADC) |
| Energy saving | Energy Efficient Ethernet (802.3az) |
| LPU slots | 6 |
| MPU slots | 2 |
| Fan slots | 2 |
| System power supply slots | 4 |
| PoE power supply slots | 4 |
| Maximum port density | ·V100R006C00 and V200R001C00: 288xFE, 288xGE, 240x10GE·V200R002C00 to V200R007C00: 288xFE, 288xGE, 240x10GE, 12x40GE·V200R008C00 to V200R009C00: 288xFE, 288xGE, 240x10GE, 12x40GE, 12x100GE·V200R010C00 and later versions: 288xFE, 288xGE, 288x10GE, 48x40GE, 24x100GE |
| Installation | In an N66E or N68E cabinet, one or two chassis in a cabinet |
| CSS | CSS card or service port clustering |
| PoE | ·Power input: Versions earlier than V200R006C00 support only AC power supply. V200R006C00 and later versions support both AC power supply and DC power supply (only 2200 W DC power modules).·PoE power module backup: no backup, 3+1 backup, or 2+2 backup·Maximum output power: 8800 W |
| Maximum power consumption (fully loaded, no PoE power supply) | 2200 W |
| Power specifications | ·DC input voltageRated voltage: -48 V DC/-60 V DCMaximum voltage range:1600 W/2400 W DC power module: -38.4 V DC to -72 V DC2200 W DC power module: -40 V DC to -72 V DC·AC input voltageRated voltage: 110 V AC/220 V AC, 50/60 HzMaximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) |
| Dimensions (W x D x H, excluding rack-mounting brackets) | ·With cable management frames: 442 mm x 585 mm x 441.7 mm (17.4 in. x 23.0 in. x 17.39 in. (10 U))·Without cable management frames: 442 mm x 489 mm x 441.7 mm (17.4 in. x 19.3 in. x 17.39 in. (10 U)) |
| Weight (empty/fully loaded) | 15 kg/42 kg (33.1 lb/92.6 lb) |
| Reliability and availability | MTBF: 24.2 yearsMTTR: 52 minutesAvailability: 0.9999959 |
| Environment parameters | ·Operating temperature and altitude:-60 m to +1800 m (197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)·Operating relative humidity: 5% RH to 95% RH (noncondensing)·Storage temperature: -40°C to +70°C (-40°F to +158°F)·Storage altitude: < 5000 m (16404 ft.)·Storage relative humidity: 5% RH to 95% RH (noncondensing) |
| Noise at normal temperature (acoustic power) | ≤ 72 dBA |
| EMC compliance | CISPR22 Class ACISPR24EN55022 Class AEN50024ETSI EN 300 386 Class AICES 003 Class AAS/NZS CISPR22 Class AVCCI Class AIEC61000-6-2IEC61000-6-4IEC61000-4-2ITU-T K 20ITU-T K 21ITU-T K 44CNS13438 CLASS AKN 22 CLASS A |
| Environmental standards compliance | RoHSREACHWEEE |
| Safety standards compliance | IEC 60950-1EN 60950-1UL 60950-1CSA C22.2 No 60950-1AS/NZS 60950.1BS EN 60950-1 |
