LE0MF48SC
Model: LE0MF48SC Huawei S9300 Series Switch Line Card
Details: 48-Port 100BASE-X Interface Card(EC,SFP)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
LE0MF48SC Overview

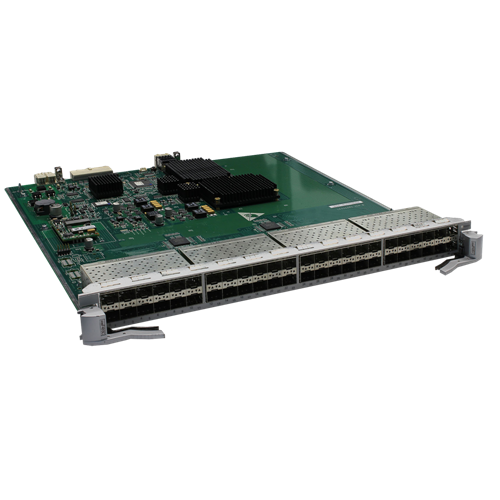

Quick Specs Figure 1 shows the appearance of LE0MF48SC.
Table 1 shows the Quick Specs.
| Port Count | 48 |
| Interface Type | 100BASE-X |
| Card Type | EC, SFP |
| Module Type | SFP (Small Form-factor Pluggable) |
| Transmission Distance | Varies with SFP module |
| Supported Fiber Types | Single-mode (SMF), Multi-mode (MMF) |
| Optical Wavelength | Varies with SFP module |
| Hot Swappable | Yes |
| Power Supply | Internal |
| Dimensions (H x W x D) | 35.1 mm x 397.2 mm x 430.4 mm |
| Relative Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Maximum power consumption | 76 W |
| Compatibility | Huawei LE0MF series chassis |
