LHP-200Q
Model: LHP-200Q – Dahua Wired Alarms
Details: Dahua Quad Beam Detector
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
LHP-200Q Overview

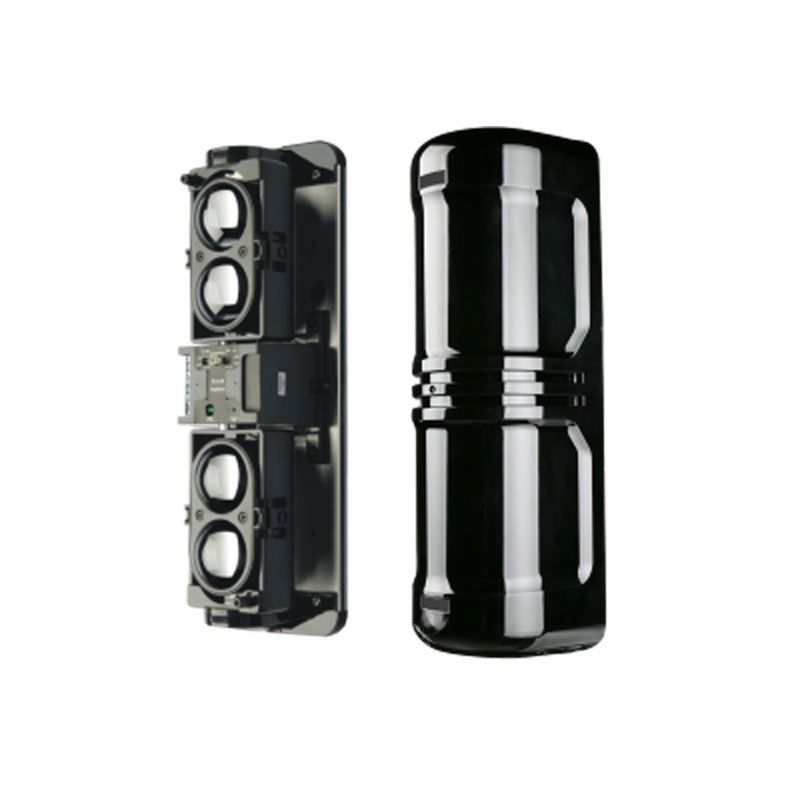

Quick Specs Figure 1 shows the appearance of LHP-200Q.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Product Name | Dahua Quad Beam Detector |
| Model | LHP-200Q |
| Detection Method | Active Infrared |
| Detection Range | Up to 200 meters |
| Number of Beams | 4 |
| Power Supply | DC12V/24V or AC24V |
| Power Consumption | Active: °100mA; Passive: °20mA |
| Alarm Output | NC/NO relay output, 1A @ 30V DC/0.5A @ 125V AC |
| Response Time | 50ms to 700ms (adjustable) |
| IP Rating | IP65 |
| Operating Temperature | -25°C to +55°C |
| Operating Humidity | 95% Max |
| Material | Polycarbonate housing |
| Mounting Options | Wall or pole mount |
| Dimensions | 430mm x 85mm x 85mm |
| Alignment Angle | °90° horizontal, °10° vertical |
| Cable Entry | ?19mm, ?26mm |
| LED Indicator | Yes, for alignment and feedback |
| Solar Panel Compatible | Optional |
| Vandal resistant | Yes |
