Sold out
LR1002-1EC
Model: LR1002-1EC – Dahua Transmission Accessories
Details: Dahua Single-Port Long Reach Ethernet over Coax Extender
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
LR1002-1EC Overview

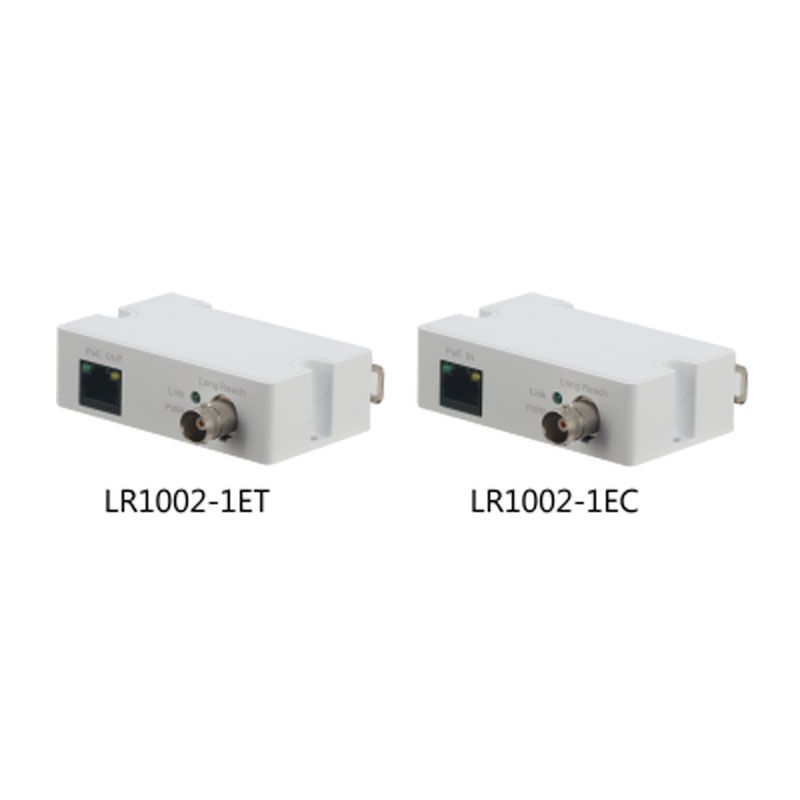

Quick Specs Figure 1 shows the appearance of LR1002-1EC.
Table 1 shows the Quick Specs.
| Product Type | Single-Port Long Reach Ethernet over Coax Extender |
| Brand | Dahua |
| Model | LR1002-1EC |
| Ports | 1 Ethernet Port |
| Compatibility | Coaxial Cable |
| Data Rate | 10/100 Mbps |
| Max Distance | 1000 meters over RG59 coaxial cable |
| Transmission Rate | 100 Mbps @ 400 meters |
| Physical Interface | BNC (Coaxial Connector) |
| Network Standard | IEEE 802.3 |
| Operating Temperature | -40??C to +75??C |
| Storage Temperature | -40??C to +85??C |
| Humidity | 0 to 95% non-condensing |
| Power Supply | 12V DC |
| Power Consumption | 2.5W |
| Dimensions | 84 mm ?? 23 mm ?? 20 mm |
| Compliance | CE, FCC, and RoHS |
| LED Indicators | Power, Ethernet Link/Act, Coax Link |
| Mounting | DIN Rail mount or wall mount |
| Warranty | 3 years |
