Sold out
LS-S5328C-HI
Model: LS-S5328C-HI Huawei S5300 Series Switch
Details: S5328C-HI Mainframe (24 10/100/1000Base-T, Chassis, Dual Slots of power, Without Flexible Card and Power Module)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
LS-S5328C-HI Overview

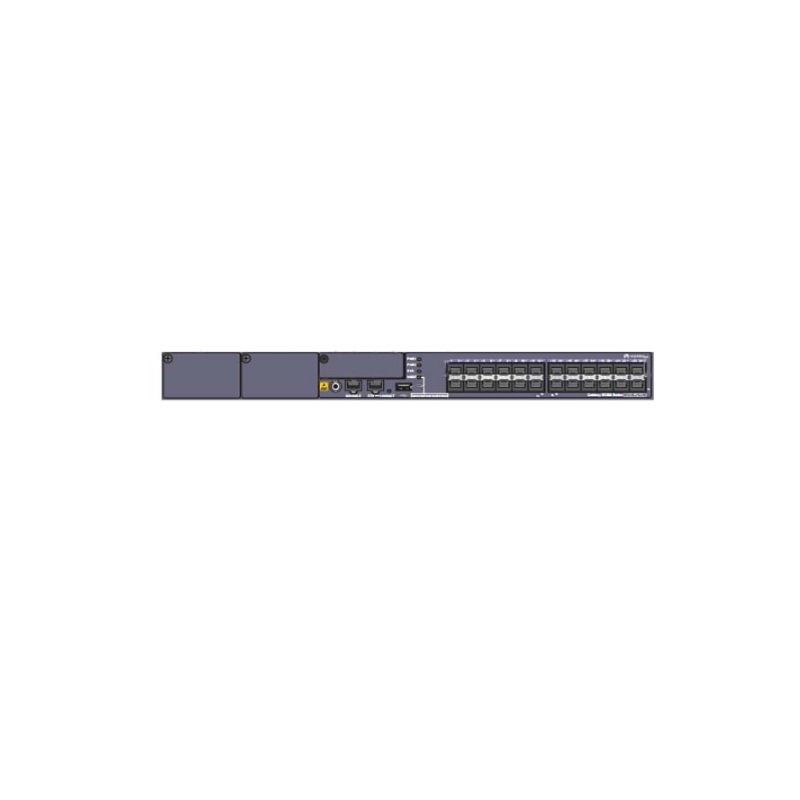

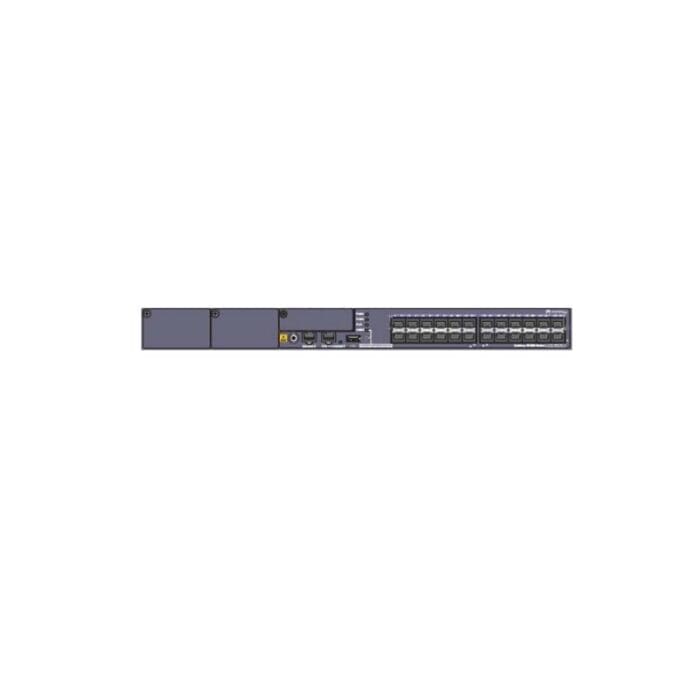

Quick Specs Figure 1 shows the appearance of LS-S5328C-HI.
Table 1 shows the Quick Specs.
| Fixed port | 24 10/100/1000Base-T ports |
| Forwarding performance | 96 Mpps |
| Extended slot | provides an extended slot for an uplink subcard |
| MAC address table | IEEE 802.1d |
| VLAN | 4K VLANs |
| MPLS | MPLS, MPLS VLL,L3VPN |
| VPLS | Martini VPLS |
| IP routing | Static routing, RIPv1, RIPv2, OSPF, IS-IS, BGP, and ECMP |
| IPv6 features | Neighbor Discovery (ND) |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Security features | User privilege management and password protection |
| Reliability | RRPP ring topology and RRPP multi-instance |
| OAM | Hardware implementationEFM OAMCFM OAMY.1731 performance test supports hardware-level delay and jitter detection |
| Management andMaintenance | MAC Forced Forwarding (MFF) |
| Operating environment | Operating temperature: 0 o C–50 o C (long term); -5 o C–55 o C (short term)Relative humidity: 10%–90% (non-condensing) |
| Input voltage | AC:Rated voltage range: 100 V to 240 V AC, 50/60 HzMaximum voltage range: 90 V to 264 V AC, 50/60 HzDC:Rated voltage range: –48 V to –60 V, DCMaximum voltage range: –36 V to –72 V, DC |
| Dimensions (mm) | 442 mm x 220 mm x 43.6 mm |
| Typical power consumption | < 76 W |
