LS-S5348TP-PWR-SI
Model: LS-S5348TP-PWR-SI Huawei S5300 Series Switch
Details: S5348TP-PWR-SI Mainframe(48 10/100/1000Base-T,4 100/1000Base-X Combo,PoE,Chassis,Dual Slots of power,Without Power Module)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
LS-S5348TP-PWR-SI Overview

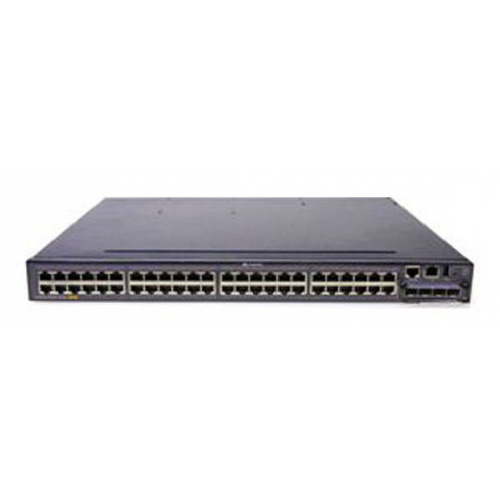

Quick Specs Figure 1 shows the appearance of LS-S5348TP-PWR-SI.
Table 1 shows the Quick Specs.
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| Mean time between failures (MTBF) | 71.7 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | ±1 kV in common mode |
| Power supply surge protection | ±2 kV in differential mode; ±4 kV in common mode |
| Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 43.6 mm |
| Weight | Fully loaded:≤ 8.5 kgEmpty loaded:≤ 5 kg |
| Stack ports | Two stack ports available on each stack card |
| Maximum stackbandwidth(bidirectional) | 48 Gbit/s |
| RPS | Not supported |
| PoE | Yes |
| Rated voltage range | -48 V DC to -60 V DC100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | -36 V DC to -72 V DC90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum systempower consumption(100% throughput,100% PoE loads,full speed of fans) | 907 W (system power consumption: 167 W;PoE: 740 W) |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -40°C to +70°C |
| Noise under normal temperature (27°C, sound power) | less than 51 dBA |
| Relative humidity | 5% RH to 95% RH, noncondensing |
| Operating altitude | AC: 0 m to 5000 mDC: 0 m to 2000 m |
| EMC | CISPR22 Class ACISPR24EN55022 Class AEN50024ETSI EN 300 386 Class ACFR 47 FCC Part 15 Class AICES 003 Class AAS/NZS CISPR22 Class AIEC61000-4-2ITU-T K 20ITU-T K 44 |
| Environmentalstandards | RoHSREACHWEEE |
| Security | IEC 60950-1EN 60950-1/A11/A12UL 60950-1CSA C22.2 No 60950-1AS/NZS 60950.1 |
| Laser safety | IEC60825-1IEC60825-2EN60825-1EN60825-2 |
