M-200
Model: PAN-M-200 Appliance
Details: Palo Alto Networks M-200, 16TB RAID storage (4 8TB RAID certified drives preinstalled). Rack mount rails included.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
M-200 Overview

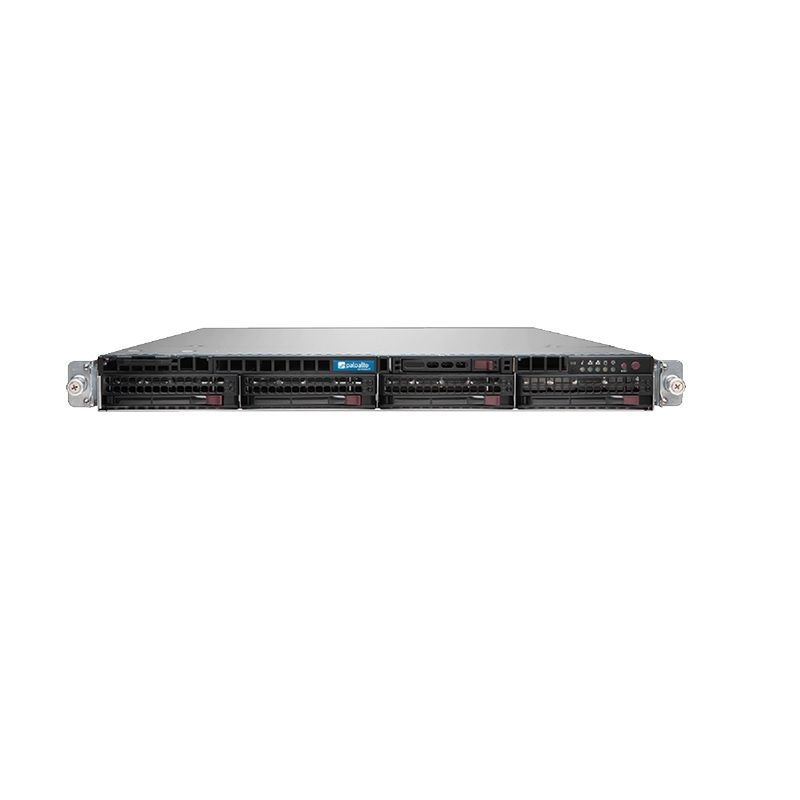

Quick Specs Figure 1 shows the appearance of M-200.
Table 1 shows the Quick Specs.
| Model | PAN-M-200 |
| Rack units (U) and dimensions | Rack unit—1UDimensions—1.7” H x 29” D x 17.2” W(4.32cm H x 73.67cm D x 43.69cm W) |
| Power Supplies | Two 750W AC power supplies; the second power supply is for redundancy. |
| Input voltage and frequency | 100-240VAC (50-60Hz) |
| Power consumption | 330W |
| Maximum current consumption | 9.5A@100VAC |
| Maximum inrush current (per power supply) | 35A |
| Operating temperature range | 41°F to 104°F (5°C to 40°C) |
| Non-operating temperature | -40°F to 140° F ( -40° to 60° C) |
| Humidity tolerance | Operating relative humidity (noncondensing)—8% to 90%Non-operating relative humidity (noncondensing)—5% to 95% |
| Airflow | Front-to-back |
| Maximum BTU/hr | 1,114BTU/hr (127VAC) and1,090BTU/hr (240VAC) |
| Electromagnetic Interference (EMI) | FCC Part 15, EN 55032, CISPR 32 |
| Maximum operating altitude | 7,500ft (2,286m) |
Get more information
Do you have any question about the M-200?
Contact us now via Live Chat or sales@metafinitivetech.com
