-5%
M-500
Model: PAN-M-500 Appliance
Details: Palo Alto Networks PA-M-500, Network management device, 10 GigE, 2U, rack-mountable
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
M-500 Overview

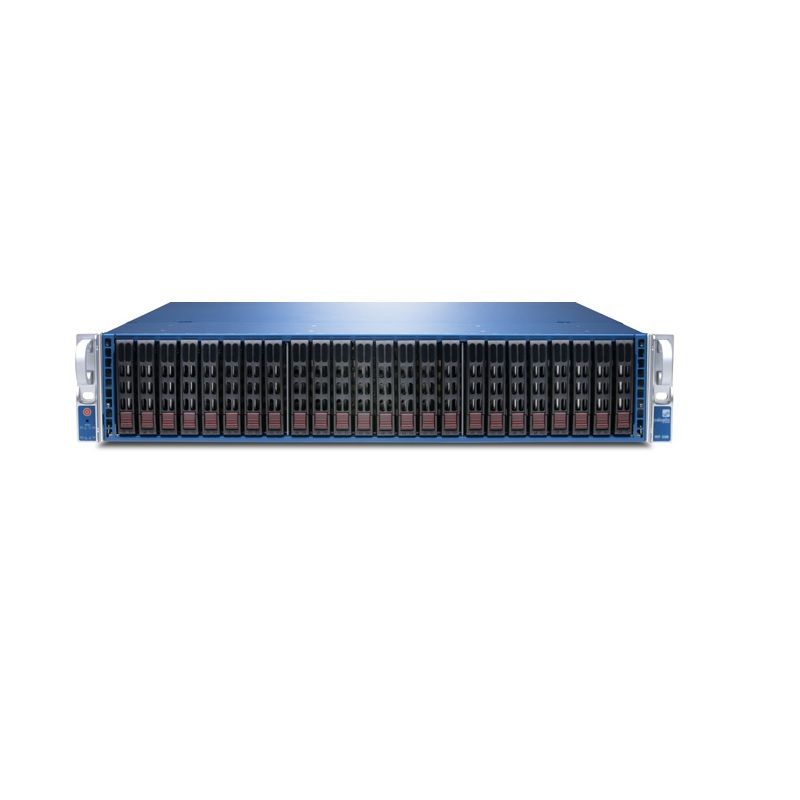

Quick Specs Figure 1 shows the appearance of M-500.
Table 1 shows the Quick Specs.
| Model | PAN-M-500 |
| Description | Palo Alto Networks PA-M-500, Network management device, 10 GigE, 2U, rack-mountable |
| I/O | (4) 10/100/1000, (1) DB9 console serial port, (1) USB port,(2) 10 GigE ports |
| Storage | Maximum configuration: RAID: 24 x 2 TB RAID CertifiedHDD for 24 TB of RAID storage |
| Power Supply/Max Power Consumption | Dual power supplies, hot swap redundant configuration1200W/493W (total system) |
| Max BTU/hr | 1,681 BTU/hr |
| Input Voltage (Input Frequency) | 100-240 VAC (50-60 Hz) |
| Max Current Consumption | 4.2A @ 120 VAC |
| Mean Time Between Failure (MTBF) | 6 years |
| Rack Mountable (Dimensions) | 2 U, 19” standard rack (3.5”H x 21”D x 17.5”W) |
| Safety | UL, CUL, CB |
| EMI | FCC Class A, CE Class A, VCCI Class A |
| Environment | Operating Temperature 50° to 95° F, 10° to 35° CNon-operating Temperature -40° to 158° F, -40° to 65° C |
| Minimum Server Requirements | 81 GB Hard Drive8 CPU cores16 GB RAM |
| VMWare Support | VMware ESX 3.5, 4.0, 4.1, 5.5, 6.5 |
| Browser Support | IE v7 or greaterFirefox v3.6 or greaterSafari v5.0 or greaterChrome v11.0 or greater |
| Log Storage | VMware Virtual Disk: 24 TB maximum |
Get more information
Do you have any question about the M-500?
Contact us now via Live Chat or sales@metafinitivetech.com
