M-600
Model: PAN-M-600 Appliance
Details: Palo Alto Networks M-600 chassis with 16TB storage (4x8TB RAID certified drives) and 4 post rack mount rails
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
M-600 Overview

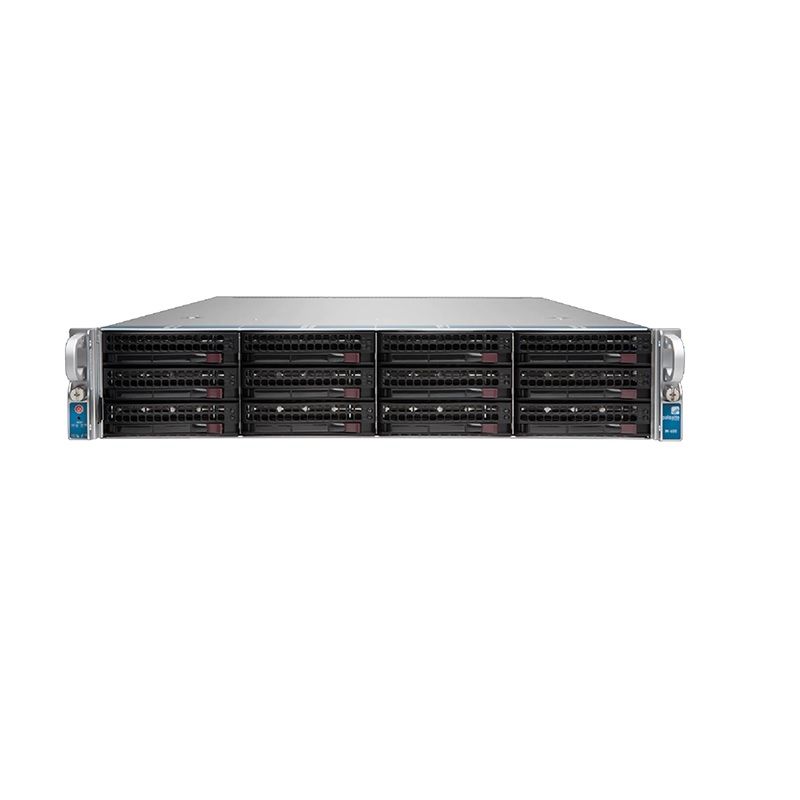

Quick Specs Figure 1 shows the appearance of M-600.
Table 1 shows the Quick Specs.
| Model | PAN-M-600 |
| Rack units (U) and dimensions | Rack unit—2UDimensions—3.5” H x 28.46” D x 17.2” W(8.89cm H x 72.29cm D x 43.69cm W) |
| Power Supplies | Two 750W AC power supplies; the second power supply is for redundancy. |
| Input voltage and frequency | 100-240VAC (50-60Hz) |
| Power consumption | 486W |
| Maximum current consumption | 4.5A@240VAC |
| Maximum inrush current (per power supply) | 35A |
| Operating temperature range | 41°F to 104°F (5°C to 40°C) |
| Non-operating temperature | -40°F to 140° F ( -40° to 60° C) |
| Humidity tolerance | Operating relative humidity (noncondensing)—8% to 90%Non-operating relative humidity (noncondensing)—5% to 95% |
| Airflow | Front-to-back |
| Maximum BTU/hr | 1,803BTU/hr (127VAC) and 1,765BTU/hr (240VAC) |
| Electromagnetic Interference (EMI) | FCC Part 15, EN 55032, CISPR 32 |
| Maximum operating altitude | 7,500ft (2,286m) |
