MCX555A-ECAT
Model: MCX555A-ECAT – Mellanox Network Cards
Details: Mellanox ConnectX-5 VPI adapter card, EDR IB (100Gb/s) and 100GbE, single-port QSFP28, PCIe3.0 x16, tall bracket
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
MCX555A-ECAT Overview

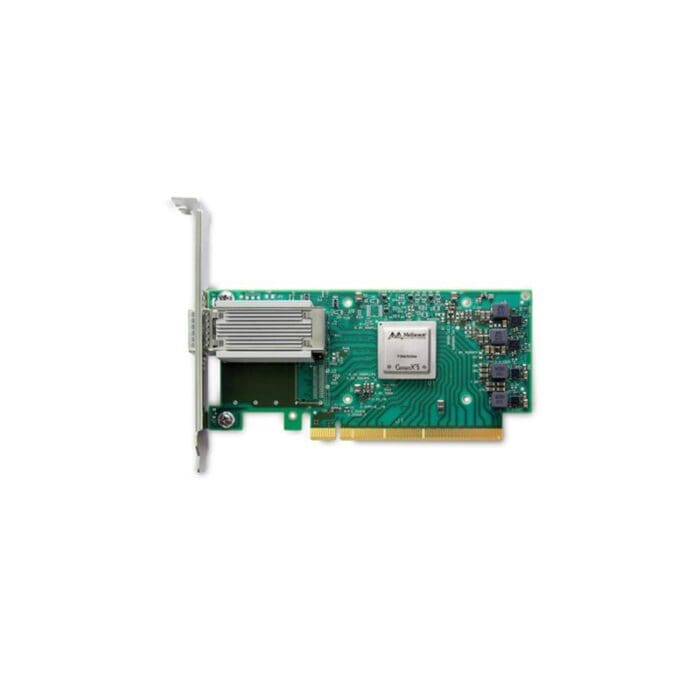

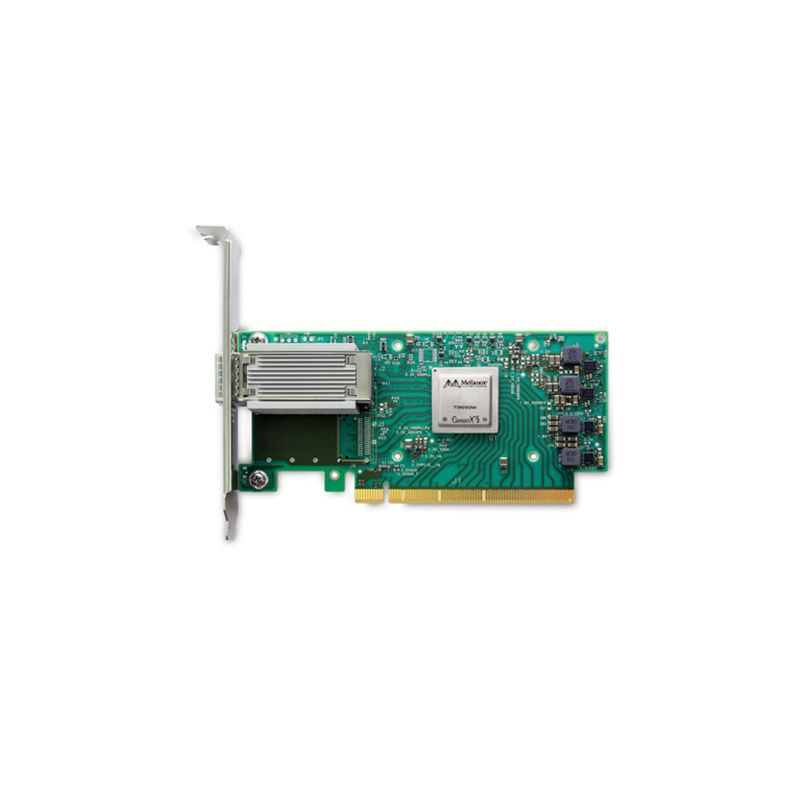

Quick Specs Figure 1 shows the appearance of MCX555A-ECAT.
Table 1 shows the Quick Specs.
| Model | MCX555A-ECAT |
| Protocol Support | InfiniBand: IBTA v1.3aAuto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port |
| Ethernet | 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR |
| Data Rate | InfiniBand:SDR/DDR/QDR/FDR/EDREthernet:1/10/25/40/50/100 Gb/s |
