MCX653105A-ECAT-SP

Original price was: $723.00.Current price is: $686.85.

Model: MCX653105A-ECAT-SP – Mellanox Network Cards
Details: Mellanox ConnectX-6 VPI adapter card, 100Gb/s (HDR100, EDR IB and 100GbE), single-port QSFP56, PCIe3.0/4.0 x16, tall bracket, single pack
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: MCX653105A-ECAT-SP Category:
Description

MCX653105A-ECAT-SP Overview

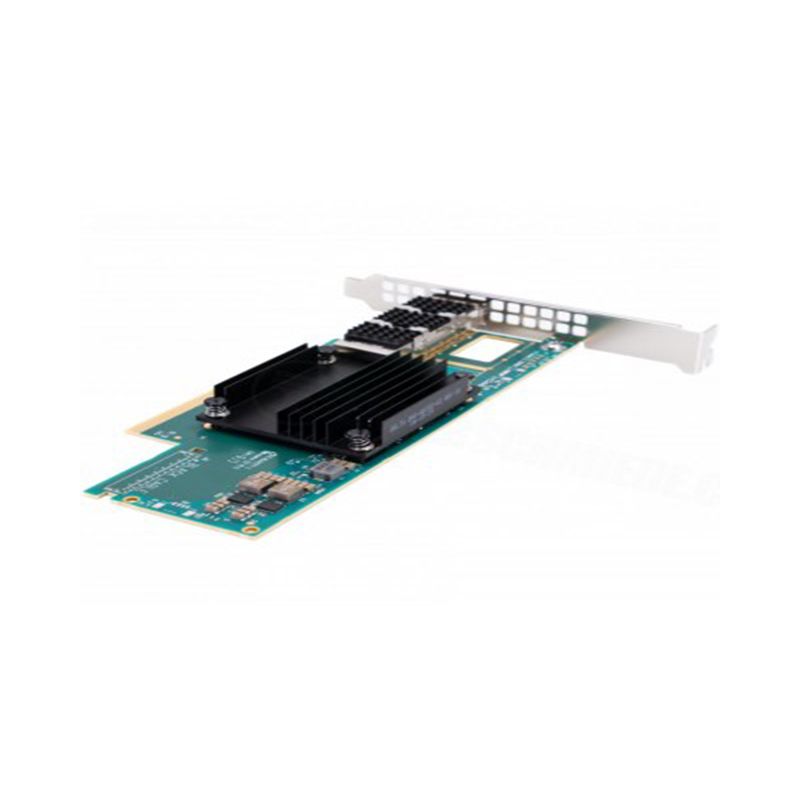

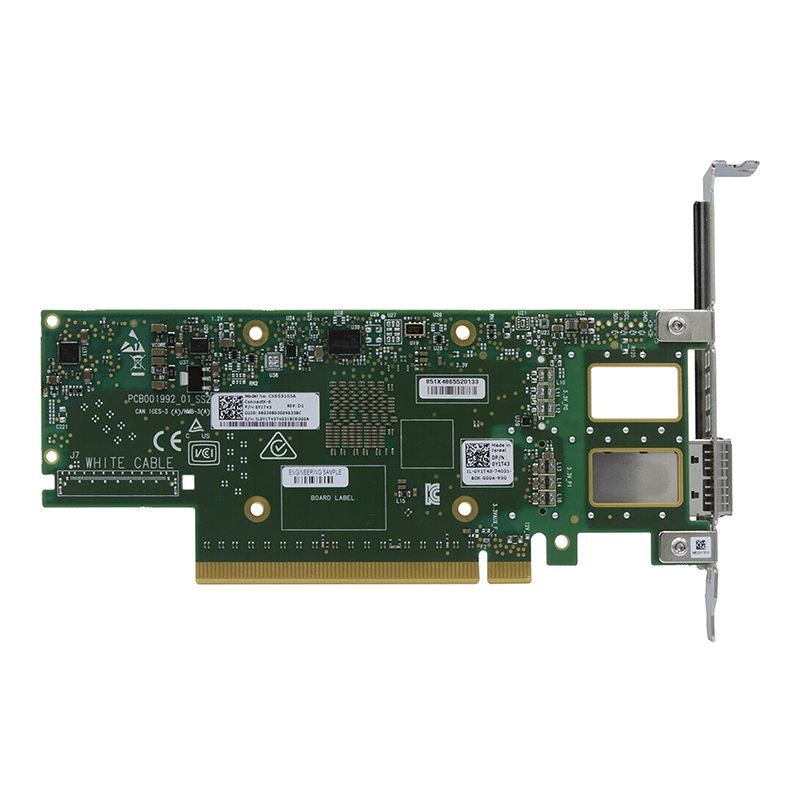

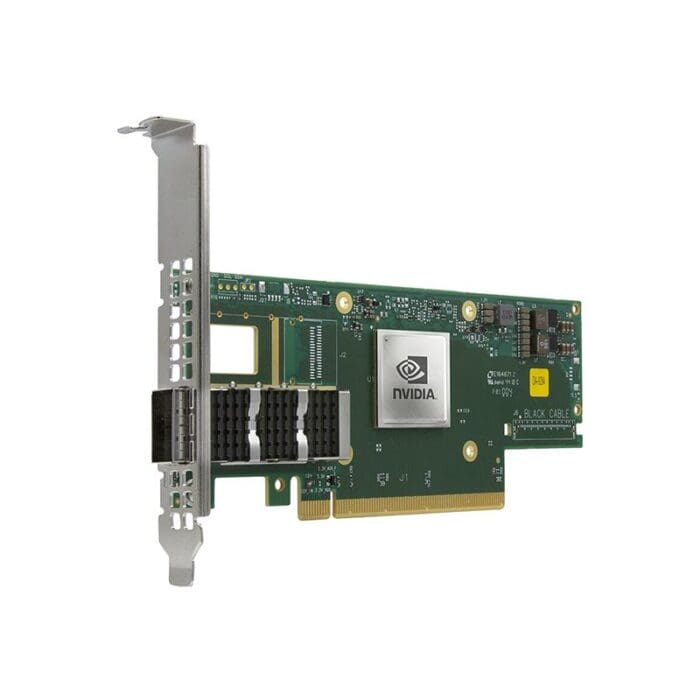

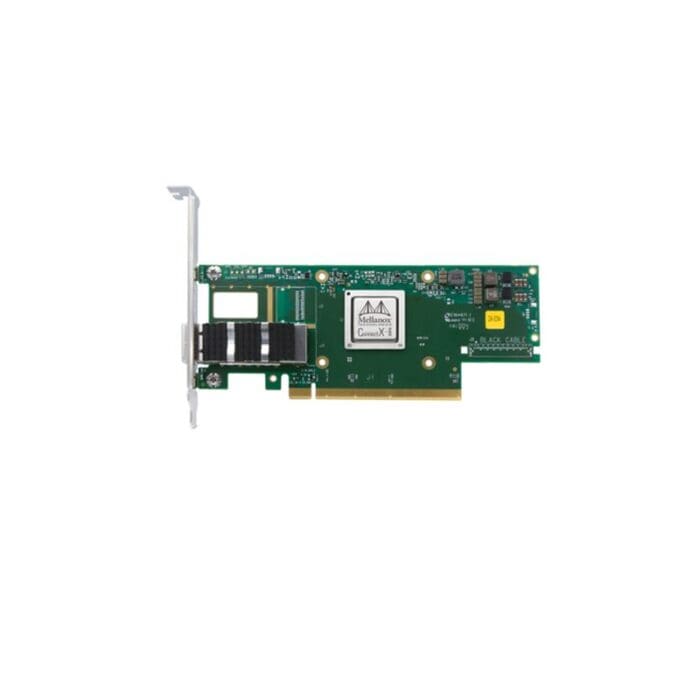

Quick Specs Figure 1 shows the appearance of MCX653105A-ECAT-SP.

Table 1 shows the Quick Specs.

Model MCX653105A-ECAT-SP
Compatibility Linux, PC
Interface Type PCI Express
Type Wired
Interface (Bus) Type PCI Express 4.0 x16
PCI Specification Revision PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0
Ports 100Gb Ethernet / 100Gb Infiniband QSFP28 x 1
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand
Network / Transport Protocol TCP/IP, UDP/IP, iSCSI
Features Auto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), InfiniBand DDR Link support, Jumbo Frames support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, InfiniBand FDR Link support, congestion control, Advanced Error Reporting (AER), Extended Message-Signaled Interrupts (MSI-X), Header Data Split (HDS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), InfiniBand EDR Link support, TLP Processing Hint (TPH), InfiniBand SDR Link support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), user mode registration and remapping of memory (UMR), On demand paging (ODP), Message Signaled Interrupts (MSI), InfiniBand HDR100 Link support

Get more information
Do you have any question about the MCX653105A-ECAT-SP?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

Not Available.
