-5%
MCX653105A-HDAT-SP
Model: MCX653105A-HDAT-SP – Mellanox Network Cards
Details: ConnectX-6 VPI adapter card, HDR IB (200Gb/s) and 200GbE, single-port QSFP56, PCIe4.0 x16, tall bracket, single pack
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
MCX653105A-HDAT-SP Overview

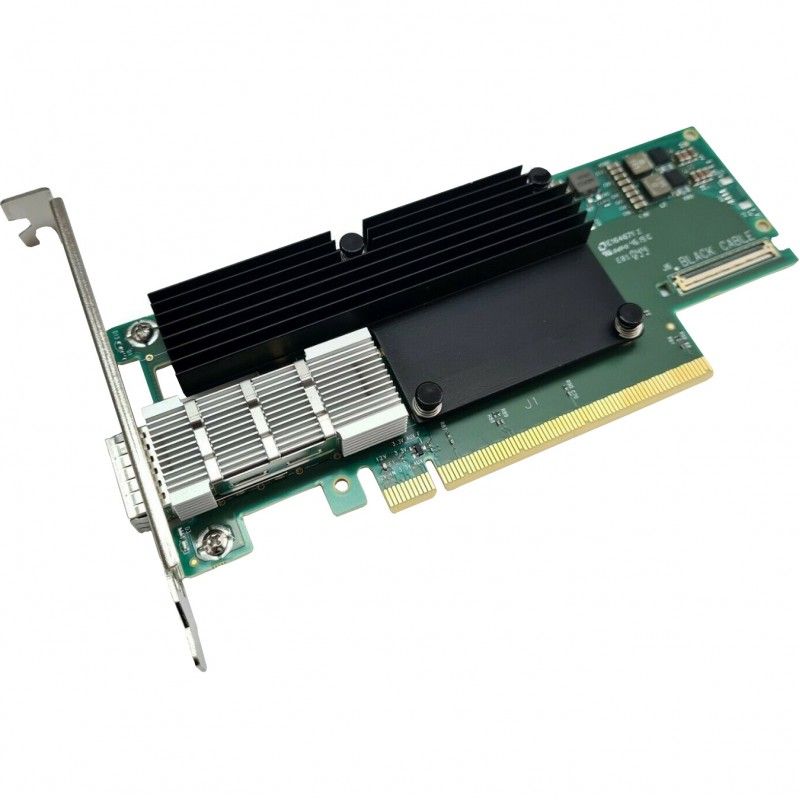

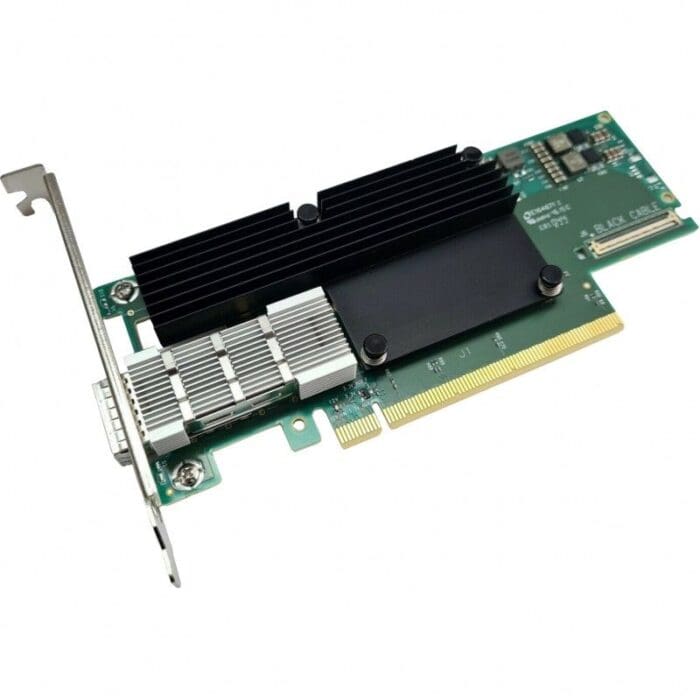

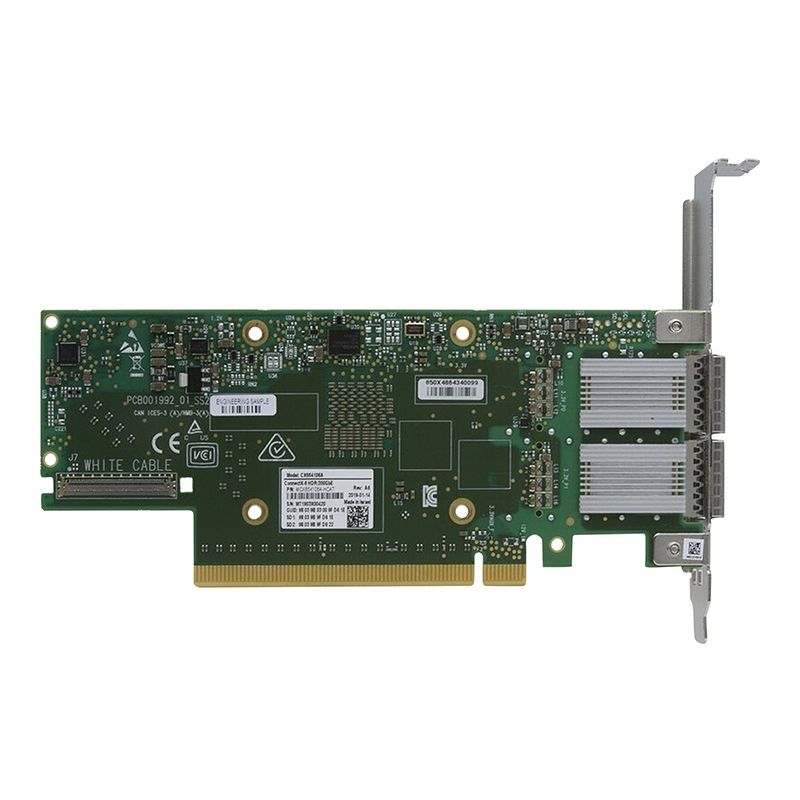

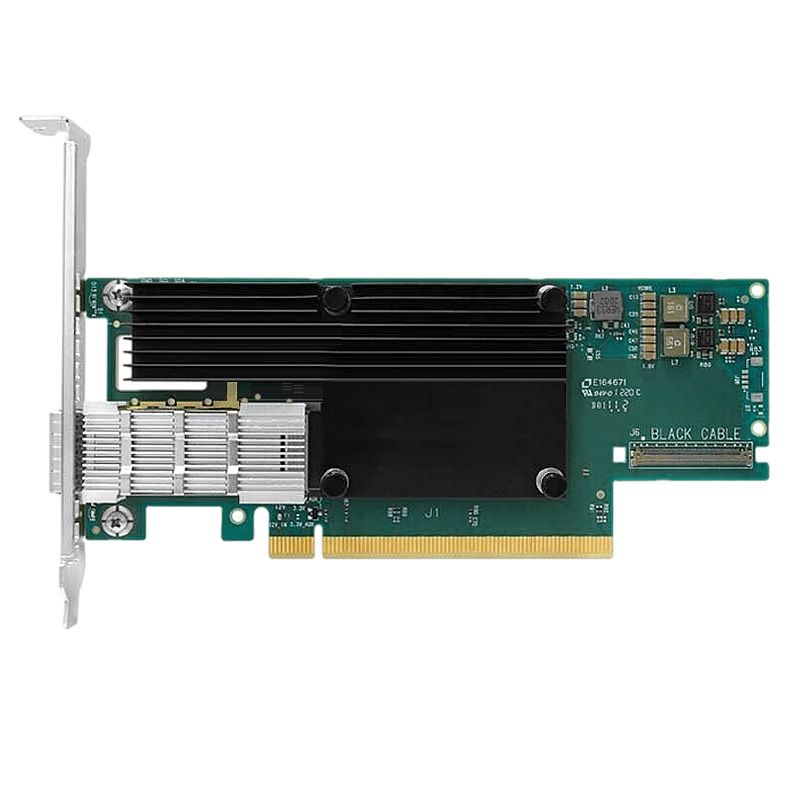

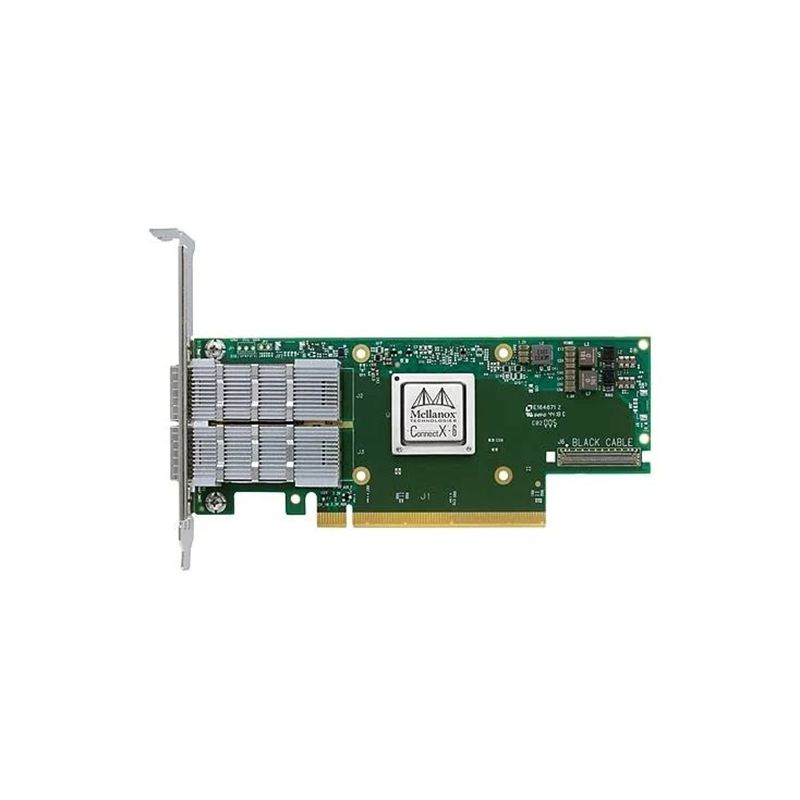

Quick Specs Figure 1 shows the appearance of MCX653105A-HDAT-SP.
Table 1 shows the Quick Specs.
| Model | MCX653105A-HDAT-SP |
| Compliant Standards | IBTA 1.3, IEEE 1588v2, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by |
| Connectivity Technology | Wired |
| Data Link Protocols | 10 Gigabit Ethernet, 100 Gigabit Ethernet, 100 Gigabit InfiniBand, 200 Gigabit Ethernet, 200 Gigabit InfiniBand, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 200 GBps |
| Features | Advanced Error Reporting (AER), Auto-negotiation, Congestion control, Dynamically Connected transport (DCT), Extended Message-Signaled Interrupts (MSI-X), Extended Reliable Connected transport (XRC), Header Data Split (HDS), InfiniBand DDR Link support, InfiniBand EDR Link support, InfiniBand FDR Link support, InfiniBand HDR100 Link support, InfiniBand QDR Link support, InfiniBand SDR Link support, Jumbo Frames support, Large Receive Offload (LRO), Large Send Offload (LSO), Message Signaled Interrupts (MSI), MPLS support, On demand paging (ODP), PXE support, Quality of Service (QoS), RDMA over Converged Ethernet (RoCE), Receive Side Scaling (RSS), TLP Processing Hint (TPH), Transmit Side Scaling (TSS), UEFI support, User mode registration and remapping of memory (UMR), Virtual Protocol Interconnect (VPI), VLAN support |
| Form Factor | Plug-in card |
| Host Interface | PCI Express 4.0 x16 |
| Network Standard | iSCSI, TCP/IP, UDP/IP |
| PCI Specification Revision | PCIe 1.1, PCIe 2.0, PCIe 3.0 |
| Product Type | Network adapter |
