MSB7890-ES2F

Original price was: $11,202.00.Current price is: $10,641.90.

Model: MSB7890-ES2F – Mellanox Switches
Details: Mellanox Switch-IB 2 based EDR InfiniBand 1U Switch, 36 QSFP28 ports, 2 Power Supplies (AC), unmanaged, standard depth, P2C airflow, Rail Kit
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: MSB7890-ES2F Category:
Description

MSB7890-ES2F Overview

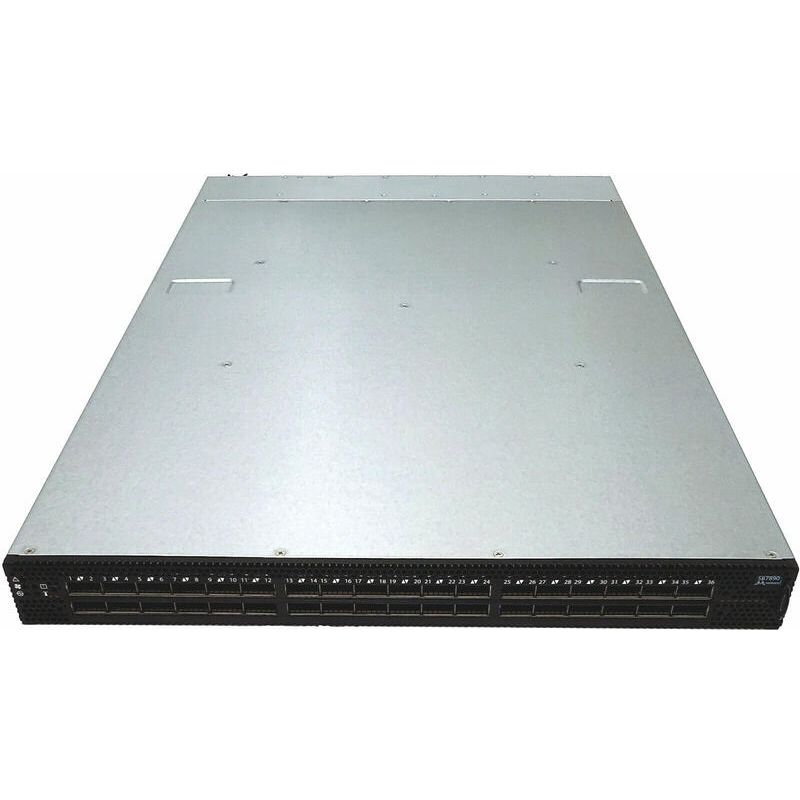

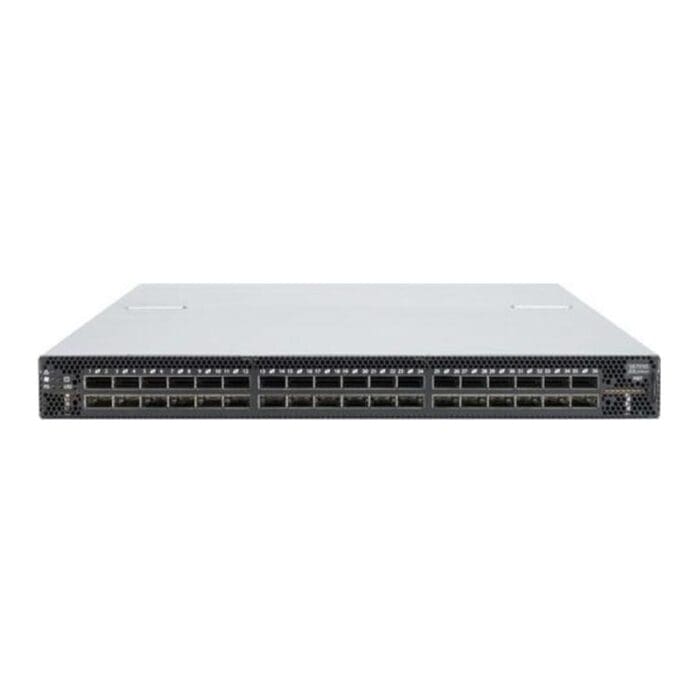

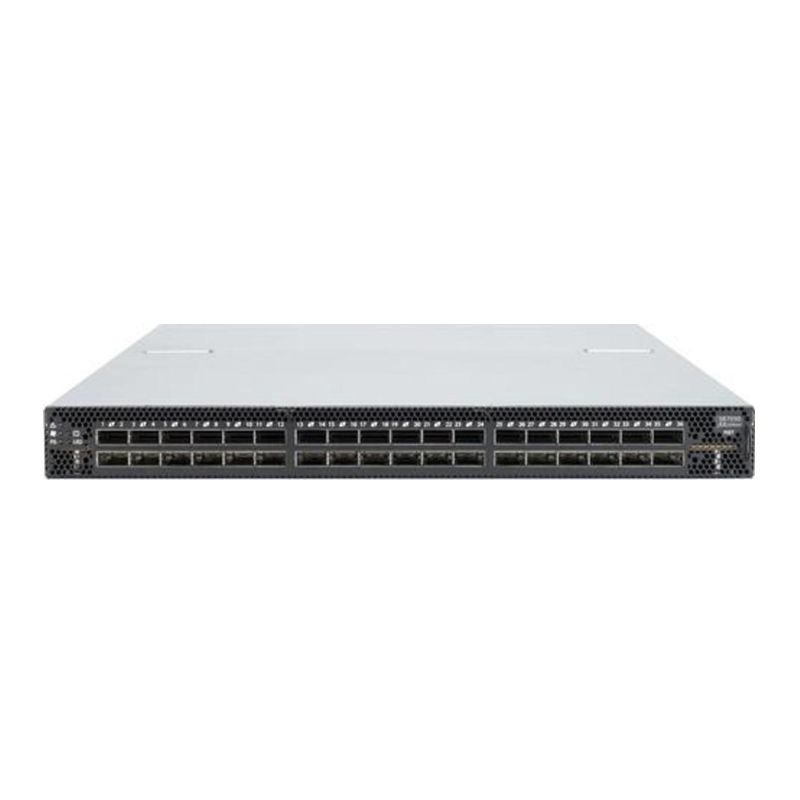

Quick Specs Figure 1 shows the appearance of MSB7890-ES2F.

Table 1 shows the Quick Specs.

Model MSB7890-ES2F
Performance – 36 X EDR 100Gb/s ports in a 1U switch– 7Tb/s aggregate switch throughput– 90ns switch latency– 122W typical power consumption
Optimized Design – 1+1 redundant & hot-swappable power– N+1 redundant & hot-swappable fans– 80 gold+ and energy star certified power supplies
Benefits – Industry-leading switch platform in performance, power, and density– Designed for energy and cost savings– Collective communication acceleration– Quick and easy setup and management– Maximizes performance by removing fabric congestions– Backward compatible to FDR technology
INFINIBAND SWITCH – 19’’ rack mountable chassis, 1U with redundant power supplies and fan units– 36 QSFP non blocking ports with aggregate throughput up to 7 Tb/s (EDR)
SWITCH SPECIFICATIONS – Compliant with IBTA 1.21 and 1.3– 9 virtual lanes: 8 data + 1 management– 256 to 4Kbyte MTU– Adaptive Routing– Congestion control– Port mirroring– IB Router*– 4X48K entry linear forwarding data base
CONNECTORS AND CABLING – QSFP28 connectors– Passive copper or active fiber cables– Optical modules
POWER SUPPLY – Dual redundant slots– Hot plug operation– Input range: 100 – 127 VAC, 200-240VAC– Frequency: 50-60 Hz, single phase AC, 4.5A, 2.9A

Get more information
Do you have any question about the MSB7890-ES2F?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

Not Available.
