MSN2410-CB2F
Model: MSN2410-CB2F – Mellanox Switches
Details: Mellanox Spectrum based 25GbE/100GbE 1U Open Ethernet switch with Onyx, 48 SFP28 ports and 8 QSFP28 ports, 2 Power Supplies (AC), x86 CPU, short depth, P2C airflow, Rail Kit
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
MSN2410-CB2F Overview

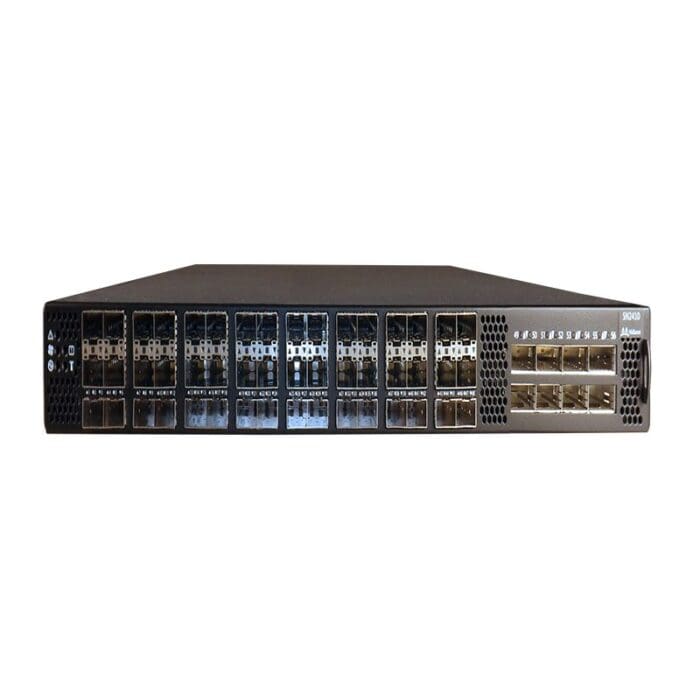

Quick Specs Figure 1 shows the appearance of MSN2410-CB2F.
Table 1 shows the Quick Specs.
| Model | MSN2410-CB2F |
| Quality of Service | – 802.3X Flow Control– WRED, Fast ECN & PFC– 802.1Qbb Priority Flow Control– 802.1Qaz ETS– DCBX – App TLV support– Advanced QoS- qualification, Rewrite, Policers – 802.1AB– Shared buffer management |
| Management & Automation | – ZTP– Ansible, SALT Stack, Puppet– FTP TFTP SCP– AAA , RADIUS TACACS+ LDAP– JSON & CLI , Enhanced Web UI– SNMP v1,2,3– In-band Management– DHCP, SSHv2, Telnet– SYSLOG– 10/100/1000 ETH RJ45 MNG ports– USB Console port for Management– Dual SW image– Events history– ONIE |
| Software Defined Network (SDN) | OpenFlow 1.3:• Hybrid• Supported controllers: ODL, ONOS, FloodLight, RYU, et |
| Frequency | 50-60Hz, single phase AC, 4.5A, 2.9A |
| Dimensions | 1.72’’ (43.8mm) H x 17.24’’ (438mm) W x 17’’ (436mm) D |
| Supported Modules and Cables | – QSFP28, SFP28 short and long range optics– QSFP28, SFP28 DAC cable– QSFP breakout cables 100GbE to 4x25GbE and 40GbE to 4x10GbEDAC, optical– QSFP breakout cables 100GbE to 2x50GbE DAC, optical– QSFP AOC– 1000BASE-T and 1000BASE-SX/LX/ ZX modules |
