Sold out
MV-A5501M/CU60E
Model: MV-A5501M/CU60E – Dahua Machine Vision
Details: Dahua Area Scan Cameras
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
MV-A5501M/CU60E Overview

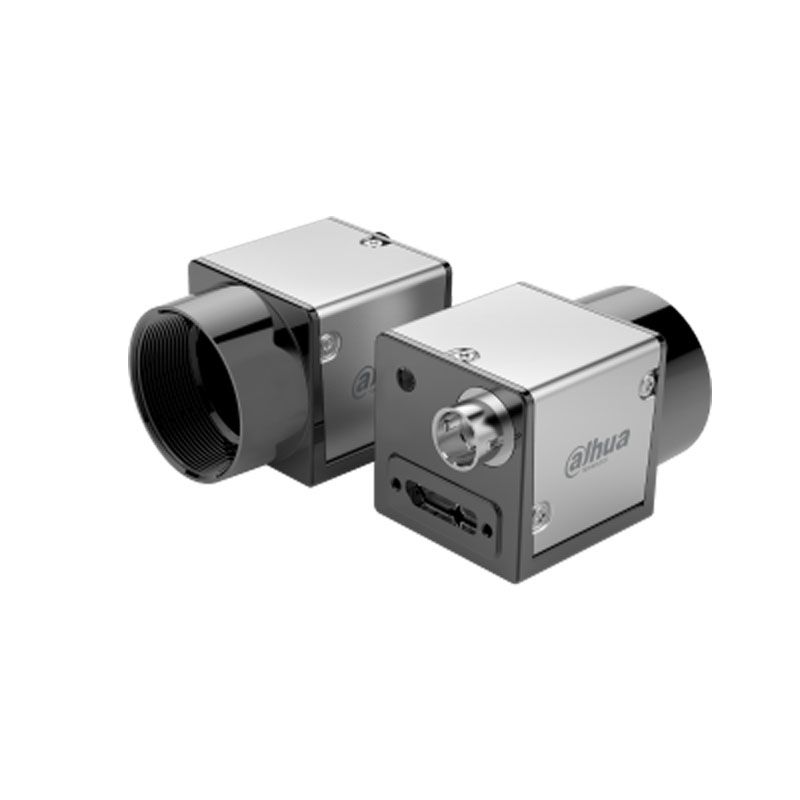

Quick Specs Figure 1 shows the appearance of MV-A5501M/CU60E.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | MV-A5501M/CU60E |
| Series | Area Scan Cameras |
| Sensor Type | CMOS |
| Resolution | 5 MP |
| Pixel Size | 3.45 x 3.45 °m |
| Frame Rate | 60 fps |
| Interface | USB 3.0 |
| Lens Mount | C-mount |
| Shutter Type | Global Shutter |
| Dynamic Range | 70 dB |
| Sensitivity | 1 V/lux-sec |
| Synchronization | Hardware Trigger, Software Trigger |
| Operating Temperature | -10°C to 50°C |
| Dimensions (LxWxH) | 29 mm x 29 mm x 56.3 mm |
| Power Supply | 5V DC |
| Power Consumption | 3 W |
| Humidity | 20% to 80% (non-condensing) |
| Compliance | CE, FCC, RoHS |
| Color Options | Monochrome |
| Software Compatibility | Dahua Software Suite |
Get more information
Do you have any question about the MV-A5501M/CU60E?
Contact us now via Live Chat or sales@metafinitivetech.com
