MV-A7500M/CU75E
Model: MV-A7500M/CU75E – Dahua Machine Vision
Details: Dahua Area Scan Cameras
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
MV-A7500M/CU75E Overview

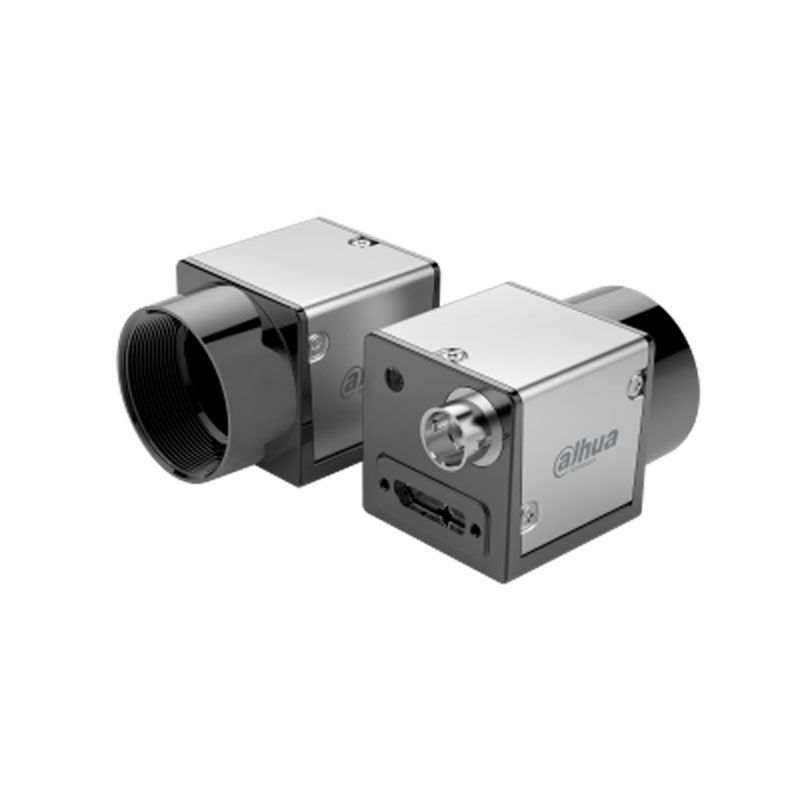

Quick Specs Figure 1 shows the appearance of MV-A7500M/CU75E.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | MV-A7500M/CU75E |
| Category | Area Scan Cameras |
| Image Sensor | CMOS |
| Resolution | 7500 x 5000 pixels |
| Pixel Size | 3.45 °m x 3.45 °m |
| Frame Rate | 4.5 fps |
| Shutter Type | Global Shutter |
| Lens Mount | C-Mount |
| Dynamic Range | 71 dB |
| Interface | USB 3.0 |
| Spectral Range | 400 nm to 1000 nm |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Power Consumption | Max 3.5W |
| Dimensions | 44 mm x 29 mm x 58 mm |
| Synchronization | Hardware trigger |
| Color/Monochrome | Monochrome |
| Gain Control | Auto/Manual |
| Exposure Control | Auto/Manual |
| Software | Compatible with various image processing software |
| Regulatory Compliance | CE, FCC, RoHS |
