MV-MH0824ME
Model: MV-MH0824ME – Dahua Machine Vision
Details: Dahua 2/3″ 8MegaPixel 8mm Lens
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
MV-MH0824ME Overview

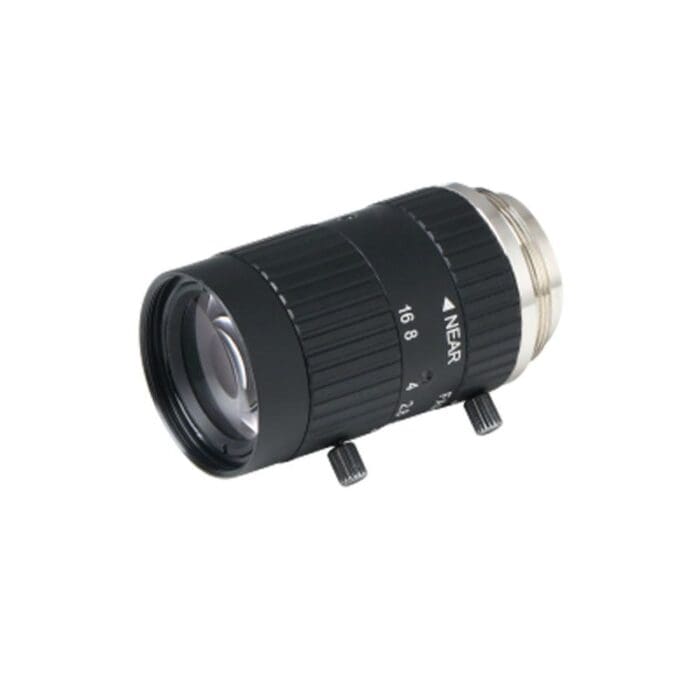

Quick Specs Figure 1 shows the appearance of MV-MH0824ME.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | MV-MH0824ME |
| Image Sensor Size | 2/3″ |
| Resolution | 8 MegaPixels |
| Focal Length | 8mm |
| Aperture | F2.4 |
| Mount Type | C-Mount |
| Minimum Object Distance | 0.1m |
| Field of View (H) | 43.6?? |
| Field of View (V) | 33.4?? |
| Back Focal Length | 17.53mm |
| Lens Structure | 11 elements in 8 groups |
| Dimensions | 53mm x 71.4mm |
| Filter Thread | M37 x 0.75 |
| Focus Control | Manual |
| Iris Control | Manual |
| Operating Temperature | -10??C to +50??C |
| Storage Temperature | -20??C to +60??C |
| Operating Humidity | 20% to 80% RH |
| Storage Humidity | 20% to 95% RH |
| Shock Resistance | 10G |
