MV-MH5028ME
Model: MV-MH5028ME – Dahua Machine Vision
Details: Dahua 2/3″ 8MegaPixel 50mm Lens
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
MV-MH5028ME Overview

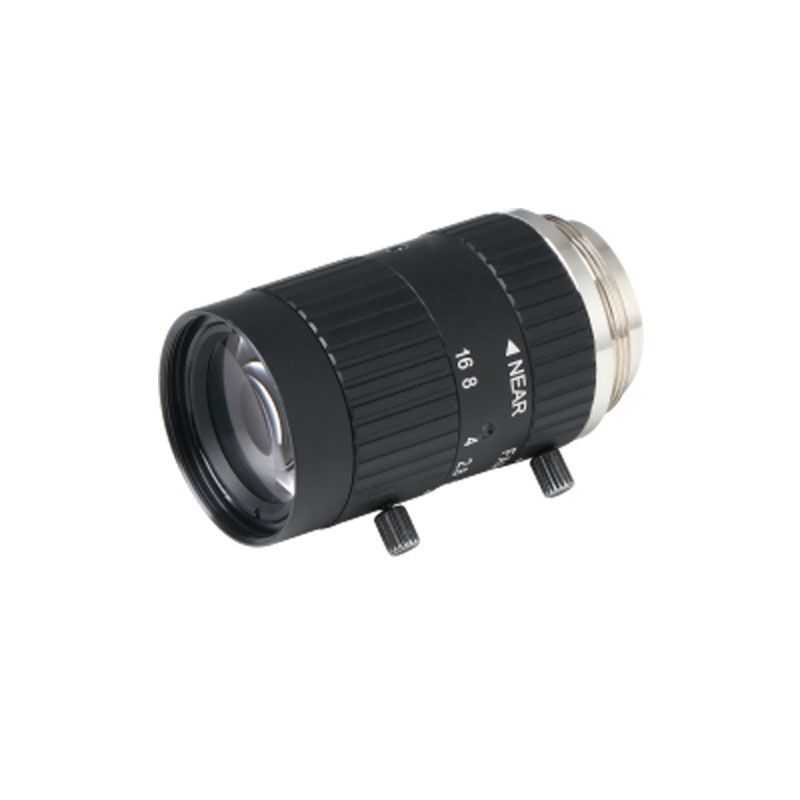

Quick Specs Figure 1 shows the appearance of MV-MH5028ME.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | MV-MH5028ME |
| Sensor Size | 2/3″ |
| Resolution | 8 MegaPixel |
| Focal Length | 50mm |
| Aperture | f/2.8 – f/16 |
| Mount Type | C-Mount |
| Field of View (FOV) | Horizontal: 8.06??, Vertical: 6.04?? |
| Minimum Object Distance | 0.5m |
| Dimensions | 55mm x 55mm x 80mm |
| Focus Type | Manual |
| Iris Type | Manual |
| Compatible Sensors | 8MP and higher |
| Distortion | < 0.1% |
| Relative Illumination | 90% |
| Flange Back Length | 17.526mm |
| Optical Back Focal Length | 12.36mm |
| Filter Thread | M52 X 0.75 |
| Operating Temperature | -20??C to +60??C |
| Storage Temperature | -20??C to +70??C |
| Humidity | 20% to 80% (non-condensing) |
