Sold out
MX-MPC2E-3D
Model: MX-MPC2E-3D – Juniper Router MX960 Modules & Cards
Details: 2xTrio Chipset Enhanced MPC, port queuing, price includes full scale L2/L2.5 and reduced scale L3 features
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
MX-MPC2E-3D Overview

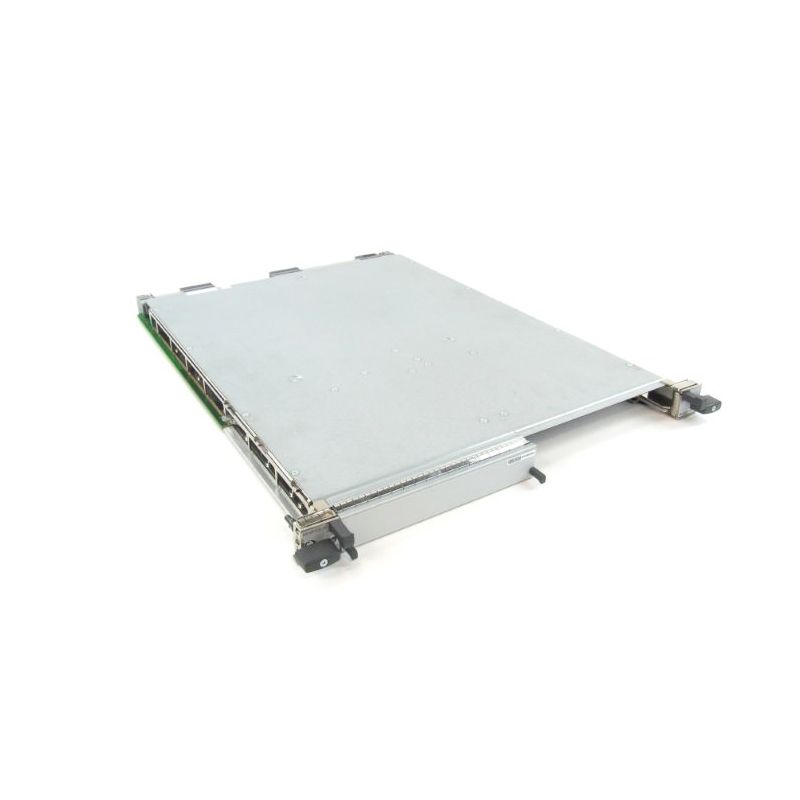

Quick Specs Figure 1 shows the appearance of MX-MPC2E-3D.
Table 1 shows the Quick Specs.
| Brand | Juniper |
| Model | MX-MPC2E-3D |
| Chipset | 2xTrio Chipset Enhanced |
| Port Queuing | Yes |
| Layer Support | Full scale L2/L2.5, reduced scale L3 |
| Interface Types | Gigabit Ethernet, 10 GbE |
| Forwarding Performance | Up to 240 Gbps per slot |
| Total Bandwidth | 480 Gbps |
| Ports | Up to 32×10 GbE or 2×40 GbE |
| Buffer Memory | Up to 1 GB per port |
| Packet Buffer Size | 64 MB shared across ports |
| Power Consumption | Typical 300W, Maximum 350W |
| Reliability | High availability (HA) support |
| QoS Features | Hierarchical QoS, Ingress and Egress shaping |
| VLAN Support | 802.1Q VLAN tagging |
| Operating Temperature | 0 to 40��C (32 to 104��F) |
| Storage Temperature | -40 to 70��C (-40 to 158��F) |
| Humidity | 5% to 90% non-condensing |
| Dimensions | 20.8 x 17.6 x 1.7 inches |
