-5%
MX100-HW
Model: MX100-HW – Cisco Meraki MX Appliances
Details: Meraki MX100 Router/Security Appliance
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
MX100-HW Overview

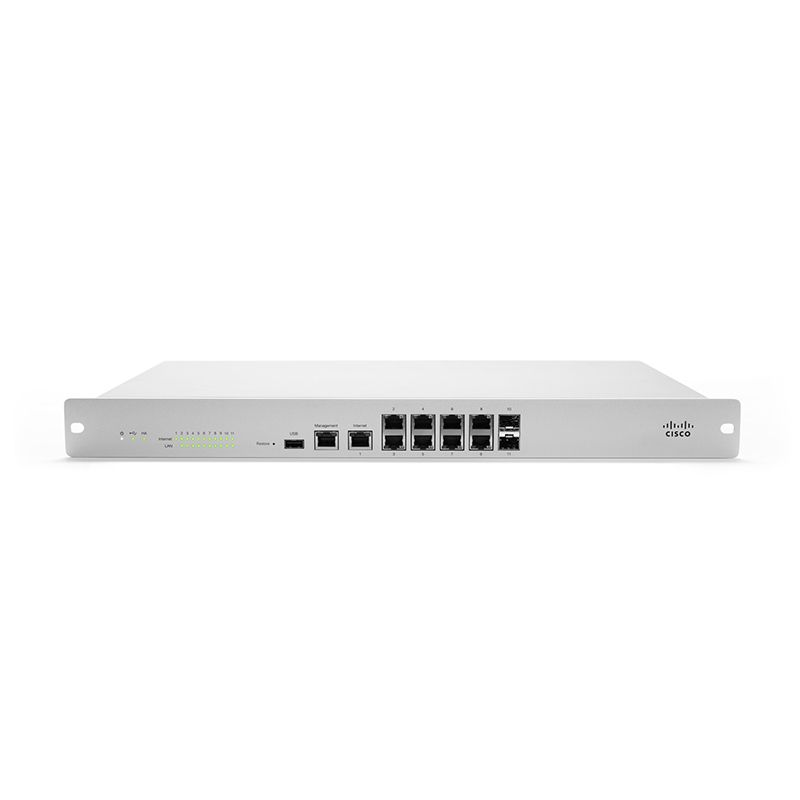

Quick Specs Figure 1 shows the appearance of MX100-HW.
Table 1 shows the Quick Specs.
| Recommended Use Cases | Large branch |
| Recommended Clients | 500 |
| Stateful Firewall Throughput | 750 Mbps |
| Advanced Security Throughput | 650 Mbps |
| Maximum VPN Throughput | 500 Mbps |
| Maximum Concurrent VPN Tunnels | 250 |
| WAN Interfaces | Dedicated: 1 x GbE RJ45 1 x USB (cellular failover)Dual-purpose: 1 x GbE RJ45 |
| LAN Interfaces | Fixed: 8 x GbE; 2 x GbE (SFP) |
| Web Caching | 1TB |
| Mounting | 1U rack |
| Dimensions (W x D x H) | 19” x 10” x 1.75” (483 mm x 254 mm x 44 mm) |
| Weight | 9 lb (4.1kg) |
| Power Supply | Internal 100-220V 50/60Hz AC |
| Power Load (idle/max) | 30W / 55W |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 5% to 95% |
| Management | – Managed via the web using the Cisco Meraki dashboard- Single pane-of-glass into managing wired and wireless networks- Zero-touch remote deployment (no staging needed)- Automatic firmware upgrades and security patches- Templates based multi-network management- Org-level two-factor authentication and single sign-on- Role based administration with change logging and alerts |
| Network and Firewall Services | – Stateful firewall, 1:1 NAT, DMZ- Identity-based policies- Auto VPN: Automated site-to-site (IPsec) VPN, for hub-and-spoke or mesh topologies- Client (IPsec L2TP) VPN- Multiple WAN IP, PPPoE, NAT- VLAN support and DHCP services- Static routing- User and device quarantine |
| Regulatory | FCC (US)CB (IEC)CISPR (Australia/New Zealand)PTCRB (US)RCM (Australia/New Zealand, Asia Pacific)GCF (EU) |
Get more information
Do you have any question about the MX100-HW?
Contact us now via Live Chat or sales@metafinitivetech.com
