MX2K-MPC9E-IRB
Model: MX2K-MPC9E-IRB – Juniper Router MX2020 Modules & Cards
Details: 1.6T Modular, MX2000, Limited L3VPN
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
MX2K-MPC9E-IRB Overview

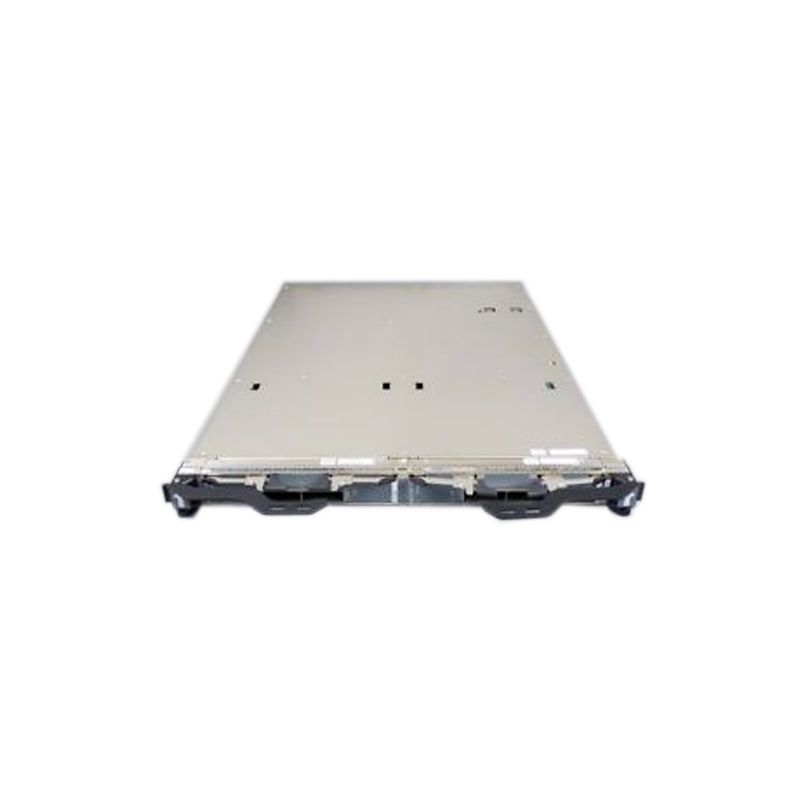

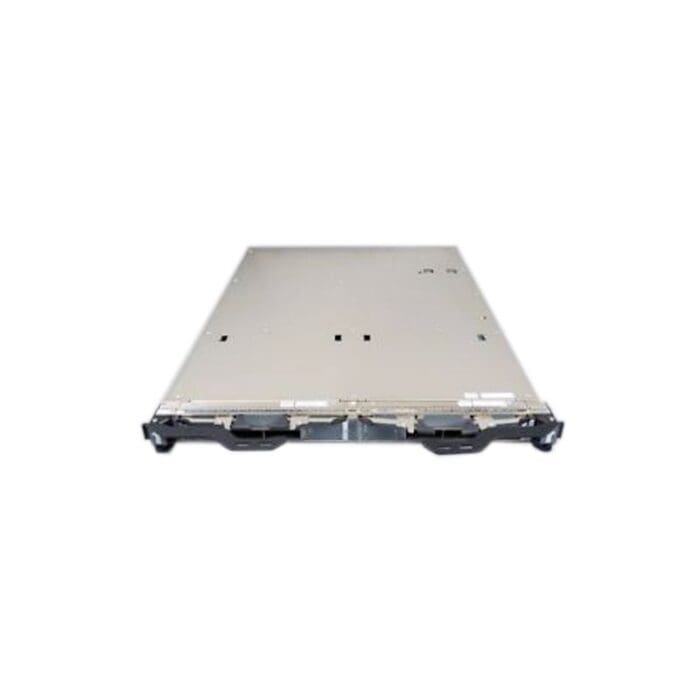

Quick Specs Figure 1 shows the appearance of MX2K-MPC9E-IRB.
Table 1 shows the Quick Specs.
| Brand | Juniper |
| Model | MX2K-MPC9E-IRB |
| Platform | MX2000 |
| Throughput | 1.6 Tbps |
| Port Capacity | 8x 100GbE or 20x 40GbE |
| Layer | 3 |
| VPN Type | Limited L3VPN |
| Form Factor | Modular |
| Redundancy | Yes |
| Forwarding Capacity | 1.6 Terabits per second |
| Packet Processing Rate | 240 million packets per second |
| Interface Types | QSFP+, CFP2 |
| High Availability | Supported |
| Operating Temperature | 0��C – 40��C (32��F – 104��F) |
| Storage Temperature | -40��C – 70��C (-40��F – 158��F) |
| Humidity | 5% to 90% (non-condensing) |
| Power Consumption | 800W typical, 1000W max |
| Management Interfaces | Console, USB, Ethernet |
| Software Compatibility | Junos OS |
| Dimensions (W x H x D) | 17.5 in x 11.5 in x 20.4 in |
| MTBF | 500,000 hours |
