-5%
MX480BASE-AC
Model: MX480BASE-AC – Juniper MX Series Base Product Bundles
Details: MX480 Base Chassis with Midplane, 1 nos. SCB-E, AC Power, Discounted RE incl. Junos
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
MX480BASE-AC Overview

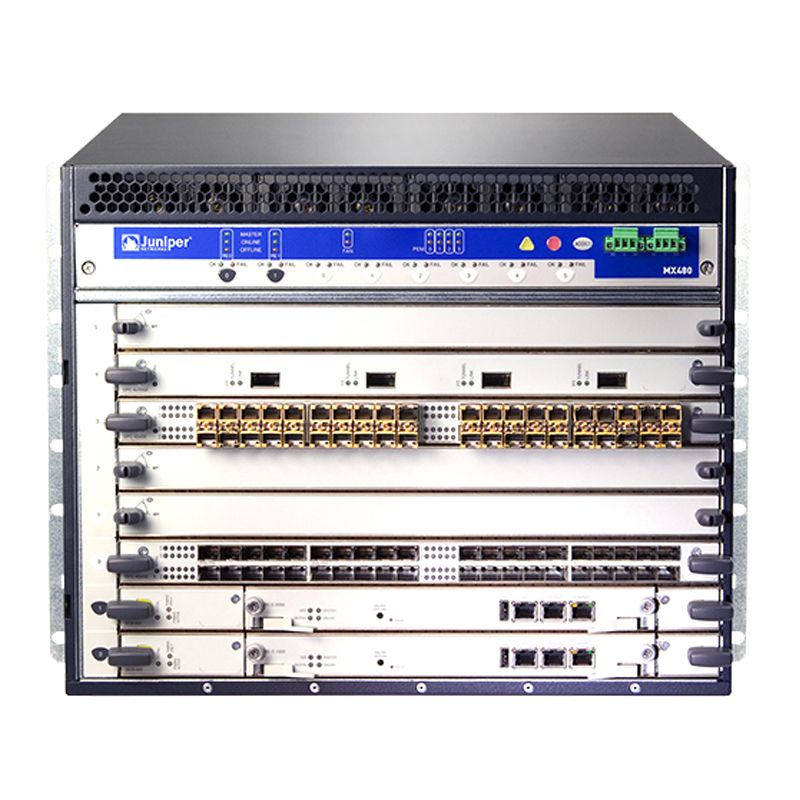

Quick Specs Figure 1 shows the appearance of MX480BASE-AC.
Table 1 shows the Quick Specs.
| Description | Juniper 8 slot MX480 AC base chassis, 1 fan tray, 3 AC power supplies, 1 SCB, 1 RE |
| System capacity | Up to 9 Tbps |
| Switch fabric capacity per slot | Up to 1.5 Tbps |
| DPCs and/or MPCs per chassis | 6 |
| Chassis per rack | 6 |
| Default memory | 2×16 MB NOR flash storage; 64 GB of DDR4 RAM; 2×50 GB SSD |
| Number of cores | 6 cores |
| Dimensions (W x H x D) | 17.45 x 14 x 27.75 in (total depth) includes standard cable manager measurements) (44.3 x 35.6 x 70.5 cm) |
| Mounting | Front or center |
| Power options | AC/DC: -40 to -72 VDC100-240 VAC |
| Typical power draw (AC) | 3470 W |
| Operating temperature | 32° to 115° F (0° to 46° C) at sea level |
| Humidity | 5 to 90 percent noncondensing |
| Altitude | No performance degradation to 13,000 ft/4,000 m |
| Air flow | Side to side |
| Operating humidity | 5% to 90% |
| Operating altitude | 10,000 ft (3048 m) |
