MX5BASE-T
Model: MX5BASE-T – Juniper MX Series Base Product Bundles
Details: MX5 chassis with timing support ??ncludes dual power supplies, MIC-3D-20GE-SFP, S-MX80-ADV-R, S-MX80-Q, and S-ACCT- JFLOW-IN-5G licenses. Power supply cable needs to be ordered separately.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
MX5BASE-T Overview

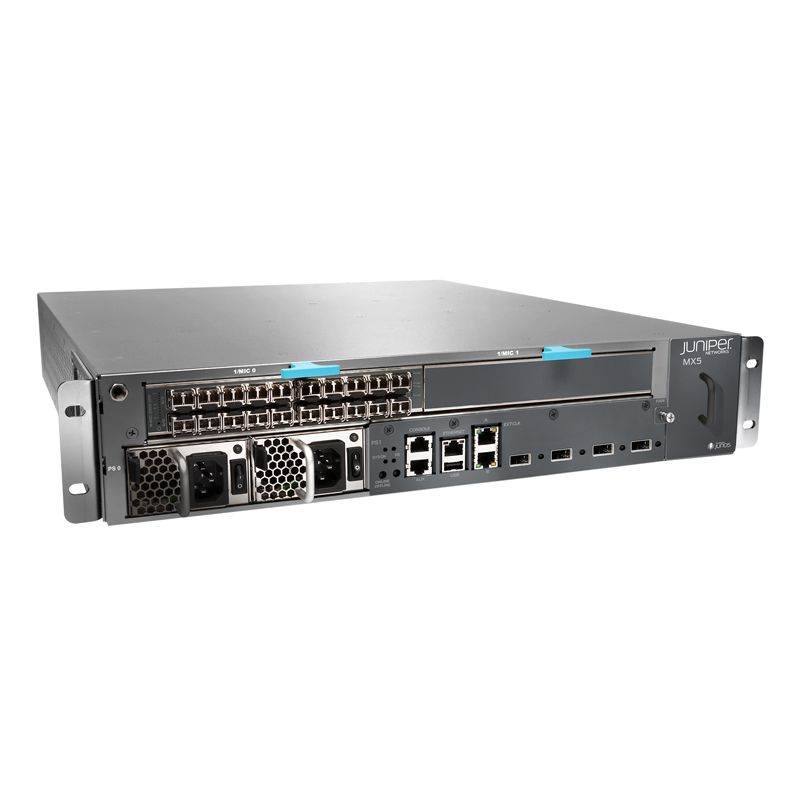

Quick Specs Figure 1 shows the appearance of MX5BASE-T.
Table 1 shows the Quick Specs.
| Description | Juniper MX5 chassis with timing support—includes dual power supplies, MIC-3D-20GE-SFP, S-MX80-ADV-R, S-MX80-Q, and S-ACCTJFLOW-IN-5G licenses. Power supply cable needs to be ordered separately. |
| System capacity | 20 Gbps |
| Switch fabric capacity per slot | N/A |
| DPCs and/or MPCs per chassis | One MIC slot with 20 port Gigabit Ethernet MIC enabled; separately purchased upgrade licenses permit use of second MIC slot and four 10-Gigabit Ethernet (10GbE) interfaces. |
| Chassis per rack | 24 |
| Default memory | 8 MB boot flash; 4 GB on NAND flash storage; 2 GB of DDR2 RAM |
| Number of cores | 1 core |
| Dimensions (W x H x D) | Chassis: 17.5 x 3.5 x 23.5 in (44.5 x 8.9 x 59.6 cm) |
| Mounting | Front or center |
| Power options | 100-240 VAC |
| Typical power draw (AC) | 365W |
| Operating temperature | 32° to 115° F (0° to 46° C) at sea level |
| Humidity | 5 to 90 percent non-condensing |
| Altitude | No performance degradation to 13,000 ft / 4,000 m |
| Air flow | Side to side [forced air] |
Get more information
Do you have any question about the MX5BASE-T?
Contact us now via Live Chat or sales@metafinitivetech.com
