MX64W-HW
Model: MX64W-HW – Cisco Meraki MX Appliances
Details: Meraki MX64W Router/Security Appliance with 802.11ac
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
MX64W-HW Overview

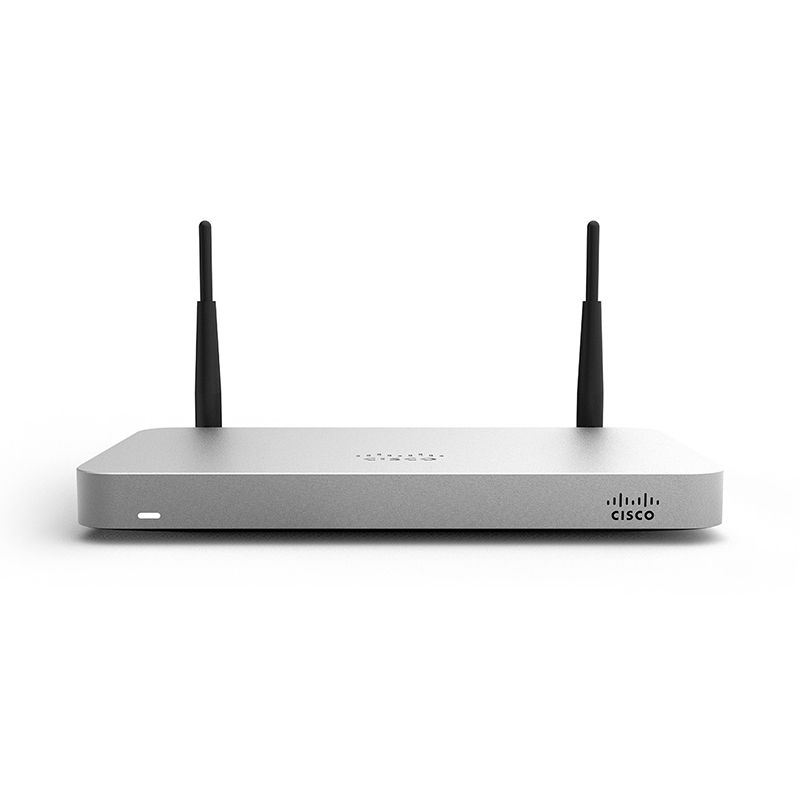

Quick Specs Figure 1 shows the appearance of MX64W-HW.
Table 1 shows the Quick Specs.
| Recommended Use Cases | Small branch |
| Recommended Clients | 50 |
| Stateful Firewall Throughput | 250 Mbps |
| Advanced Security Throughput | 200 Mbps |
| Maximum VPN Throughput | 100 Mbps |
| Maximum Concurrent VPN Tunnels | 50 |
| WAN Interfaces | Dedicated: 1 x GbE RJ45 1 x USB (cellular failover)Dual-purpose: 1 x GbE RJ45 |
| LAN Interfaces | Fixed: 4 x GbE RJ45 |
| Web Caching | – |
| Mounting | Desktop or Wall mount |
| Dimensions (w x d x h) | 9.5” x 5.2” x 1” (239mm x 132mm x 25mm) |
| Weight | 3.04 lb (1.4 kg) |
| Power Supply | 30W DC (included) |
| Power Load (idle/max) | 6W / 13W |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 5% to 95% |
| Integrated Wireless | – 1 x 802.11a/n/ac (5 GHz) radio- 1 x 802.11b/g/n (2.4 GHz) radio- Max data rate 1.2 Gbps aggregate (MX64W, MX65W),- 2 external dual-band dipole antennas (connector type: RP-SMA)- Antenna gain: 3.0 dBi @ 2.4 GHz, 3.5 dBi @ 5 GHz- WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X authentication- FCC (US): 2.412-2.462 GHz, 5.150-5.250 GHz (UNII-1), 5.250-5.350 GHZ (UNII-2), 5.470- 5.725 GHz (UNII-2e), 5.725 -5.825 GHz (UNII-3)- CE (Europe): 2.412-2.484 GHz, 5.150-5.250 GHz (UNII-1), 5.250-5.350 GHZ (UNII-2) 5.470-5.600 GHz, 5.660-5.725 GHz (UNII-2e)- Additional regulatory information: IC (Canada), C-Tick (Australia/New Zealand), RoHS |
| Management | – Managed via the web using the Cisco Meraki dashboard- Single pane-of-glass into managing wired and wireless networks- Zero-touch remote deployment (no staging needed)- Automatic firmware upgrades and security patches- Templates based multi-network management- Org-level two-factor authentication and single sign-on- Role based administration with change logging and alerts |
| Network and Firewall Services | – Stateful firewall, 1:1 NAT, DMZ- Identity-based policies- Auto VPN: Automated site-to-site (IPsec) VPN, for hub-and-spoke or mesh topologies- Client (IPsec L2TP) VPN- Multiple WAN IP, PPPoE, NAT- VLAN support and DHCP services- Static routing- User and device quarantine |
| Regulatory | FCC (US)CB (IEC)CISPR (Australia/New Zealand)PTCRB (US)RCM (Australia/New Zealand, Asia Pacific)GCF (EU) |
