Sold out
MX960BASE-DC
Model: MX960BASE-DC – Juniper MX Series Base Product Bundles
Details: MX960 14 Slot Base Chassis with 2 Fan Trays, 2 DC Power Supplies, 2 SCB, 1 RE
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
MX960BASE-DC Overview

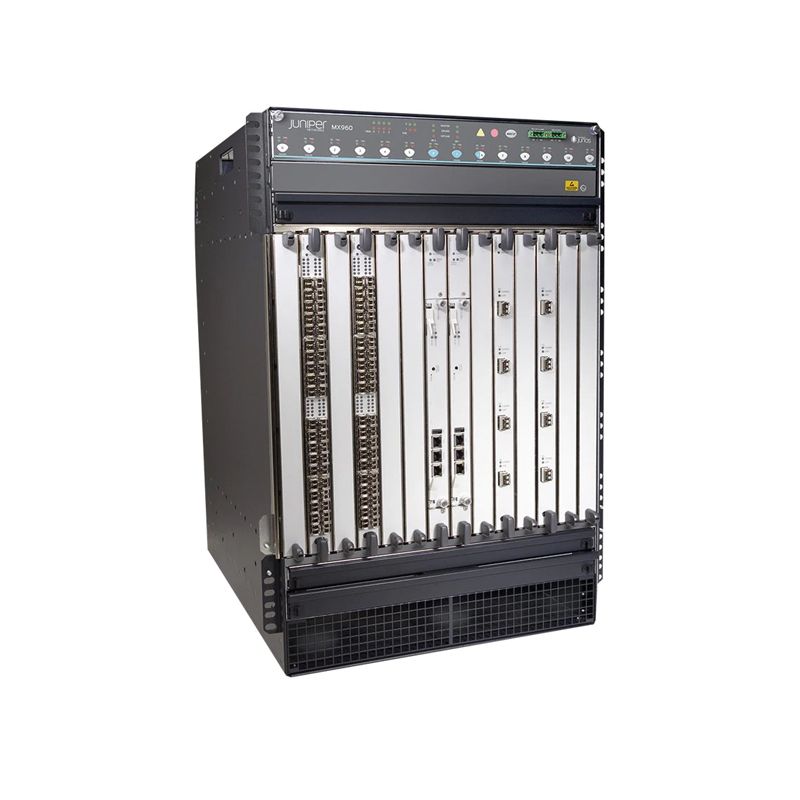

Quick Specs Figure 1 shows the appearance of MX960BASE-DC.
Table 1 shows the Quick Specs.
| Brand | Juniper |
| Product Name | MX960BASE-DC |
| Chassis Slots | 14 Slot Base Chassis |
| Fan Trays | 2 Fan Trays Included |
| Power Supplies | 2 DC Power Supplies |
| Switch Control Boards (SCB) | 2 SCB Units |
| Routing Engine | 1 RE (Routing Engine) |
| Data Rate | Up to multi-Tbps operation |
| Switch Fabric | High Performance |
| Supported Interfaces | Ethernet, SONET/SDH, PDH, OTN |
| Redundancy | Fully Redundant Power and Cooling |
| Management | Junos OS, J-Web Interface |
| Security Features | Firewall, NAT, IPSec, Logging, and Monitoring |
| Virtualization | JunosV App Engine |
| Control Plane | Enhanced Scalability and Flexibility |
| Physical Dimensions | 17.75 x 35.75 x 24.6 in (Height x Width x Depth) |
| Mounting | Rack-mountable |
| Power Consumption | Optimized for energy efficiency |
| Operational Temperature | 0oC to 40oC (32oF to 104oF) |
| Regulatory Compliance | FCC, CE, RoHS |
| Supported Software Version | Junos OS Release 15.1X49 and later |
